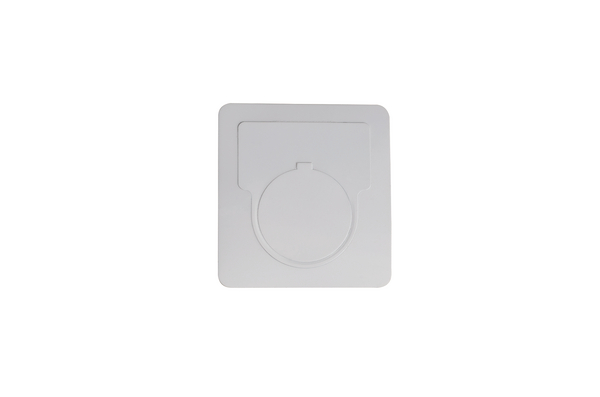

Label, white, thermal transfer print, 31.7x31.7mm, 250pcs.
Art.-No. 596-00412 | NPLH31X31WH22.5-518-WH |  Details

Foam Nameplate labels conform to textured and other low energy surfaces ensuring the labels stay in place for the life of the product.

    • Adhesive labels made of vinyl, white gloss
    • Specially tailored to the sizes of IT marking ties and IMP tag range
    • Suitable for permanent marking of components and devices on different surfaces
    • Adheres to rounded surfaces
    • Excellent print performance using TT822OUT ribbon
    • Print with TT4000+, XXXNEW for best results
    • Easy label design with TagPrint Pro2 (version 3 coming soon)
    Show more
    Add to watchlist
    Downloads
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 518, Polyester Foam (518)
    PART DESCRIPTION NPLH31X31WH22.5-518-WH
    Pack Cont. 250pcs.
    Package Content packed in reel
    Product Family FOAM Series
    Product Group Inventory and Name Plates Labels
    Self adhesive (Yes/No) Yes
    Type NPLH31X31WH22.5
    H printable 31.7mm
    HR 31.70mm
    HR 1.25"
    Height (H) 31.7mm
    Print Method thermal transfer print
    Thickness (T) 64.0µm
    VR 34.92mm
    VR 1.375"
    Width (W) 31.7mm
    Width of LIner (WL) 1.5"
    Width of Liner (WL) 38.1mm
    for Hole ∅ (FH) 22.35 mm
    Adhesive Acrylate with base of acrylic foam
    Adhesive Operating Temperature -40 °C to +80 °C
    CE Certification No
    CSA Certified No
    Curing Temperature +10 °C
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Pre-Printed No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026324692
    Labels per Column 1
    Labels per Row 1
    Packaging 1 - Weight (kg) 0.22kg
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
    UNSPSC Key 39131504
