Label, white, thermal transfer print, 15.00x5.00mm, 25000pcs.
Art.-No. 596-12151
| TAG05-15TC-1216-WH
|
Details

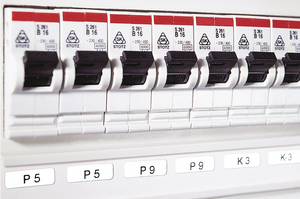

- Suited to labelling electrical panels
- White labels give excellent contrast
- Also suitable for critical surfaces
- Rounded corners ensure better long term durability of adhesion
More products in this product group:
| Application | These labels are suitable for the permanent identification of components and preassembled units within electrical industry as well as asset identification. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. They can also be used in the design and setup as well as in the repair and expansion of control cabinets and control units. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis. |
| Colour | White (WH) |
| Material | Type 1216, Polyethylene, white (1216) |
| Mech. material properties | Permanent adhesive, suitable for critical surfaces. |
| PART DESCRIPTION | TAG05-15TC-1216-WH |
| Pack Cont. | 25000pcs. |
| Package Content packed in | reel |
| Product Family | Helatag 1216, for rough surfaces |
| Product Group | Labels for control panel identification, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Short Description | Labels for control panel identification, thermal transfer, 5x15 mm white |
| Type | TAG05-15TC |
Download
| Adhesive | Acrylic |
| Curing Temperature | from 0 °C |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Initial tack | 17N |
| Initial tack | FINAT FTM 9 |
| Operating Temperature | -30 °C to +80 °C |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Shear strength | 10h |
| Shear strength test method | FINAT FTM 8 |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026296418 |
| Labels per Row | 16pcs. |
| Packaging 1 - Height (m) | 0.115m |
| Packaging 1 - Length (m) | 0.157m |
| Packaging 1 - Qty | 25000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00265m³ |
| Packaging 1 - Weight (kg) | 0.300001kg |
| Packaging 1 - Width (m) | 0.147m |
| Storage Temperature | +15 °C to +25 °C |
| Storage conditions | 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place. |
