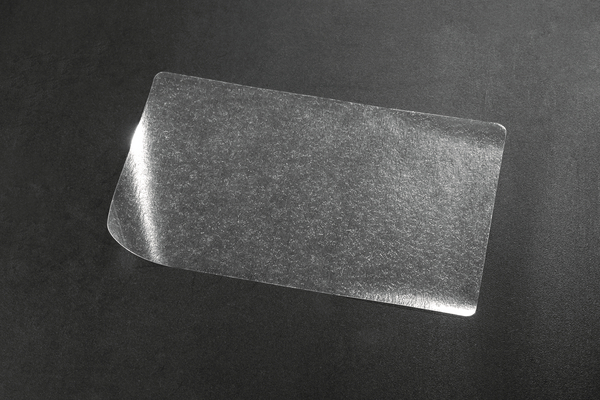

Protective laminate HELATAG, transparent, 43.18x68.58mm, 1000pcs.
Art.-No. 596-63321 | TAG3863TL1-323-CL | Details

More products in this product group:

This product is part of:

Application	Protective laminates are used for the additional protection of printed type labels, for example in the automotive sector and for other outdoor installations. The protective laminates are also used if the contours of a label, for example on glass surfaces or backlit objects, should not be visible (no-label look).
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum.
Colour	Transparent (CL)
Fixation Method	Stick
Material	Type 323, Polyvinylidene Fluoride, transparent (323)
Mech. material properties	Use as protective over-laminate or clear printable label.
PART DESCRIPTION	TAG3863TL1-323-CL
Pack Cont.	1000pcs.
Package Content packed in	pcs.
Product Family	Helatag 323, high temperature
Product Group	Protective laminates, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Protective Laminate for Thermal Transfer Printing 68.58x43.18 transparent
Type	TAG3863TL1
With label space	Yes


Height (H)	43.18mm
Print Method	thermal transfer print
Thickness (T)	25.0µm
Thickness of Foil	25
Thickness of foil test method	ASTM D3652-83
VR	48.26mm
Weight/Unit	0.000598kg
Width (W)	68.58mm
Width of Liner (WL)	75.00mm

Adhesive	Acrylic
Curing Temperature	from +10 °C
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V0
Halogen-free	No
Hazardous Goods	No
Initial tack	400g/cm²
Initial tack	ASTM D2979-71
Operating Temperature	-40 °C to +140 °C
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shear strength	100h
Shear strength test method	ASTM D3654
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications	FTM 6 (according to DIN EN ISO 4892-2)
Specifications
UL OCD link	Link
UL-File Number	MH61377

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026213422
Labels per Row	1pc.
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.165m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00223m³
Packaging 1 - Weight (kg)	0.700001kg
Packaging 1 - Width (m)	0.09m
Packaging 3 - Height (m)	0.24m
Packaging 3 - Length (m)	0.55m
Packaging 3 - Qty	12000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0515m³
Packaging 3 - Weight (kg)	8.9kg
Packaging 3 - Width (m)	0.39m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
