SR | Details

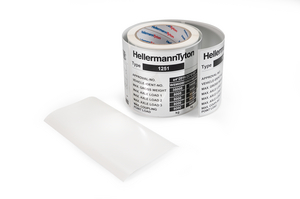

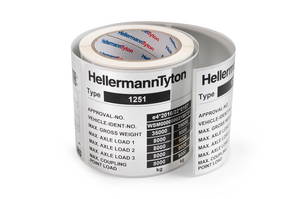

2-part label, delivered on reel together with the protective label

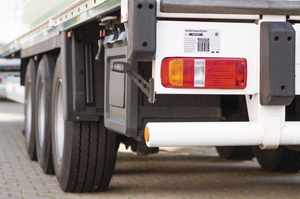

Designed for highly visible and rugged identification on trucks and trailers
Tamper-evident, when pulled off a checkered pattern will be visible as evident
High durability in outside use
Meets requirements of the KBA (Kraftfahrtbundesamt [German Federal Motor Transport Authority])
Particularly suitable as type label for vehicles

More products in this product group:

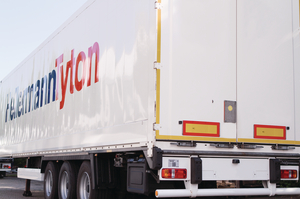

Application	These labels are primarily used for tamper-proof type label applications in the automotive and electrical industries. They are ideally suited for labelling flat surfaces, e.g. on vehicle frames and can be used as a replacement for conventional aluminium plates. The transparent protective laminate guarantees good resistance to dirt and abrasion and can be easily applied by hand.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Resistant to gasoline, mineral oils, greases, aliphatic solvents, weak acids, salts and alkalis.
Colour	Silver (SR), Transparent (CL)
Key product features	tamper-evident
Material	Type 1251, Polyester, silver and Polyester, transparent (1251)
Mech. material properties	Tamper-proof identification, leaves small checkboard traces.
PART DESCRIPTION	TAG50.8-25.4T1-SET-1251-CL/SR
Pack Cont.	1000pcs.
Package Content packed in	reel
Product Family	Helatag 1251, 2 parts
Product Group	Tamper-evident security labelling, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Tamper Evident Security Labels for Thermal Transfer Printing 50.8x25.4 mm silver/transparent
Type	TAG50.8-25.4T1-SET


Height (H)	25.40mm
Print Method	thermal transfer print
Thickness of Adhesive (TA) nom.	25µm
Thickness of Foil	63, 35
Thickness of foil test method	ASTM D3652
VR	27.94mm
Weight/Unit	0.002kg
Width (W)	50.80mm
Width of Liner (WL)	56.80mm

Adhesive	Acrylic
Curing Temperature	from 0 °C (label), from +4 °C (laminate)
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
Operating Temperature	-40 °C to +150 °C
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shear strength	100
Shear strength test method	FINAT FTM 8
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Specifications	German Federal Motor Transport Authority/technical bulletin 412-205
UV-Stabilised	Yes
Ultimate adhesion	25N/m
Ultimate adhesion test method	FINAT FTM 1


Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026657516
Labels per Row	1pc.
Packaging 3 - Height (m)	0.17m
Packaging 3 - Length (m)	0.288m
Packaging 3 - Qty	1000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0087m³
Packaging 3 - Weight (kg)	2.13kg
Packaging 3 - Width (m)	0.178m
Packaging 4 - Height (m)	1.164m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	102000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.117m³
Packaging 4 - Weight (kg)	238.26kg
Packaging 4 - Width (m)	0.8m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
