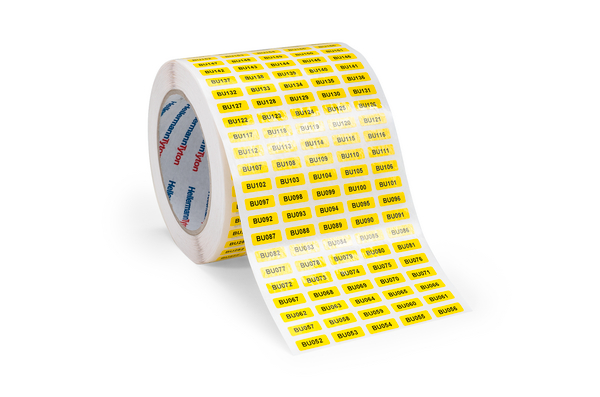

Label, yellow, thermal transfer print, 22.00x56.00mm, 2000pcs.
Art.-No. 596-51211
| TAG56-22TE-1211-YE
|
Details

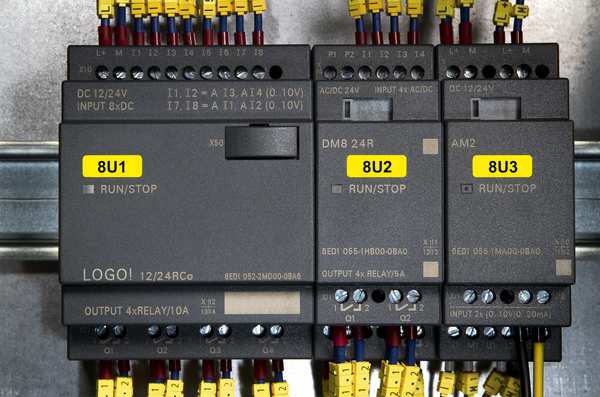

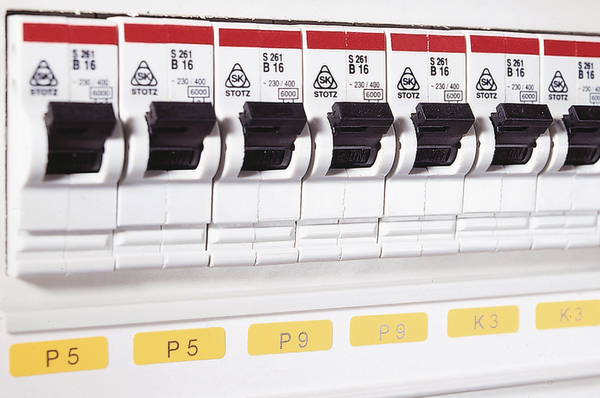

- Suited to labelling electrical panels
- Where high label visibility is required
- Partially suitable for critical surfaces
- Rounded corners ensure better long term durability of adhesion
More products in this product group:
| Application | These labels are suitable for the permanent identification of components and preassembled units within electrical industry as well as asset identification. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. They can also be used in the design and setup as well as in the repair and expansion of control cabinets and control units. Due to the structure of the vinyl label they are suitable for rougher surfaces. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis. |
| Colour | Yellow gloss (GSYE) |
| Colour Marking Field | Yellow gloss (GSYE) |
| Material | Type 1211, Vinyl, yellow gloss (1211) |
| Mech. material properties | Permanent adhesive, suitable for critical surfaces. |
| PART DESCRIPTION | TAG56-22TE-1211-YE |
| Pack Cont. | 2000pcs. |
| Package Content packed in | reel |
| Product Family | Helatag 1211 |
| Product Group | Labels for control panel identification, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Short Description | Labels for Control Panel Identification for Thermal Transfer Printing 56x22 mm yellow |
| Type | TAG56-22TE |
Download
| Adhesive | Acrylic |
| Curing Temperature | from +5 °C |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Initial tack | 11N/25 mm |
| Initial tack | FINAT FTM 9 |
| Operating Temperature | -20 °C to +80 °C |
| Peel strength | 250 N/m |
| Peel strength test method | FINAT FTM 2 |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026296395 |
| Labels per Row | 1pc. |
| Packaging 1 - Height (m) | 0.115m |
| Packaging 1 - Length (m) | 0.157m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00265m³ |
| Packaging 1 - Weight (kg) | 0.660001kg |
| Packaging 1 - Width (m) | 0.147m |
| Storage Temperature | +21 °C |
| Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
