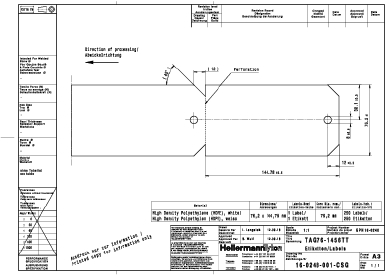

Label, white, thermal transfer print, 144.78x76.20mm, 250pcs.
Art.-No. 596-50932 | TAG76-1456TT-932-WH | Details

Ideal for use in identifying medium to large size cable bundles for either permanent or temporary use
Label can be passed through the printer twice so giving double sided print capability
Very good UV resistance properties and can therefore be used externally

More products in this product group:

Application	Apply HELATAG 932 with both permanent or releasable cable ties as required
Chem. Material Properties	Resistant against alcohol, water, oils, acetone, tulone and petrols.
Colour	White (WH)
Key product features	non-adhesive
Material	Type 932, Polyolefin, white (932)
Mech. material properties	Flexible material ideally suited for cable marking
PART DESCRIPTION	TAG76-1456TT-932-WH
Pack Cont.	250pcs.
Package Content packed in	bag
Product Family	Helatag 932
Product Group	Non-adhesive cable marking labels, thermal transfer
Self adhesive (Yes/No)	No
Shape of Tag	5
Short Description	Plain label for thermal transfer printing 76.2 x 144.8 mm white
Type	TAG76-1456TT


Height (H)	144.78mm
Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Thickness of Foil	280
Thickness of foil test method	ASTM D3652-83
VR	144.78mm
Weight/Unit	0.003369kg
Width (W)	76.20mm

Curing Temperature	from 0 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +90 °C
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Specifications	BS-2848 Type 3 Class BST
Test Method Tensile Strength	DIN 53455

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026211015
Labels per Row	1
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.165m
Packaging 1 - Qty	250
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00223m³
Packaging 1 - Weight (kg)	0.842251kg
Packaging 1 - Width (m)	0.09m
Packaging 3 - Height (m)	0.24m
Packaging 3 - Length (m)	0.55m
Packaging 3 - Qty	3000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0515m³
Packaging 3 - Weight (kg)	10.607kg
Packaging 3 - Width (m)	0.39m
Packaging 4 - Height (m)	1.104m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.06m³
Packaging 4 - Weight (kg)	190.712kg
Packaging 4 - Width (m)	0.8m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended.
