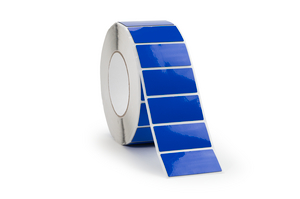

Label, blue, thermal transfer print, 18.0mm, 25m
Art.-No. 596-00701 | TAGR18TDK1-1223-BU | Details

Cost-effective replacement for engraved plastic plates, no need for additional label holder
High performance adhesive and compressible foam backing ensures optimal adhesion to uneven surfaces if required
Rounded corners ensure better long term durability of adhesion
Print high contrast text and barcodes
Print ‘On Site’ not order ‘Off Site’
Special sizes and colours are possible on request
For outstanding chemical resistance use TT122OUT

More products in this product group:

Application	Panel labels are durable adhesive labels especially made from a thick material that is designed to replace traditional engraved plastic plates. The blue glossy colour is suited to industrial control panels, switchgear, data racks and general equipment labelling. Create crisp and clear professional looking labels by printing with HellermannTyton thermal transfer printers and ribbons. Simple label design creation is easily achieved using TagPrint Pro.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance to ageing, weathering and UV-radiation. Extensive resistance to the influence of chemicals and solvents.
Colour	Blue (BU)
Material	Type 1223, Polyester, blue (1223)
Mech. material properties	Permanent adhesive with an elastic foam carrier
PART DESCRIPTION	TAGR18TDK1-1223-BU
Pack Cont.	25m
Package Content packed in	carton
Product Family	Helatag 1223
Product Group	Panel plate labels, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Panel Plate Labels for Thermal Transfer Printing 18mmx25m blue
Type	TAGR18TDK1


Print Method	thermal transfer print
Thickness (T)	50µm
Thickness of Foil	50
Thickness of foil test method	FINAT FTM 12
Weight/Unit	0.01724kg
Width (W)	18.0mm
Width of Liner (WL)	18.0mm

Adhesive	Acrylic
Curing Temperature	from +10 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +90 °C
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT122OUT, TT822OUT
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications


Country of Origin	DK
Customs Number	39199080
GTIN-13 / EAN	4031026640068
Labels per Row	1pc.
Packaging 1 - Height (m)	0.018m
Packaging 1 - Length (m)	0.173m
Packaging 1 - Qty	25
Packaging 1 - Type	reel
Packaging 1 - Volume (m³)	0.00054m³
Packaging 1 - Weight (kg)	0.431kg
Packaging 1 - Width (m)	0.173m
Packaging 2 - Height (m)	0.06m
Packaging 2 - Length (m)	0.173m
Packaging 2 - Qty	25
Packaging 2 - Type	carton
Packaging 2 - Volume (m³)	0.0018m³
Packaging 2 - Weight (kg)	0.506kg
Packaging 2 - Width (m)	0.175m
Reel Length	25.00m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
