18/11/2024

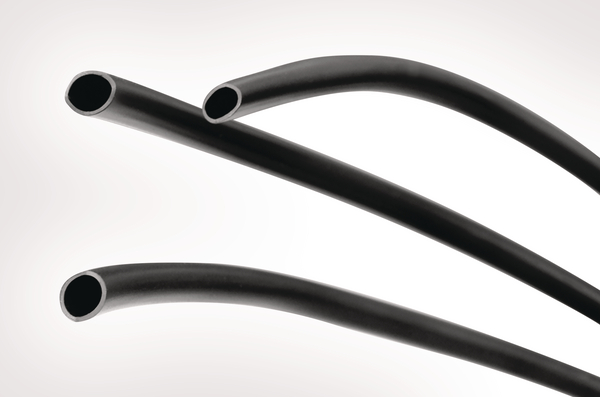

PVC sleeving 8 mm x 50 m black
Art.-No. 172-00162 | PVCB80BK-PVC-BK |  Details

    • Commercial grade PVC sleeving
    • good for insulation and identification applications
    Add to watchlist
    Downloads
    Application A commercial grade of PVC sleeving with a high temperature rating.
    Colour Black (BK)
    Description PVC Sleeving
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION PVCB80BK-PVC-BK
    Pack Cont. 50m
    Package Content packed in bag
    Product Family PVC Sleeving
    Product Group Insulation Tubing
    Short Description PVC sleeving 8 mm x 50 m black
    Type PVCB80BK
    Inside Ø (ID) 8mm
    Supplied ∅ D min. 5.0mm
    Wall (WT) 0.50mm
    Weight/Unit 4.80kg
    Dielectric Strength 40kV/mm
    Dielectric Strength test method IEC 60684 P2
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -30 °C to +105 °C, intermittent +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Specifications BS-2848 Type 3
    Tensile Strength 19MPa
    Test Method Tensile Strength IEC 60684 P2
    Country of Origin GB
    Customs Number 3917320090
    GTIN-13 / EAN 5022660176647
    Packaging 1 - Height (m) 0.33m
    Packaging 1 - Length (m) 0.09m
    Packaging 1 - Volume (m³) 0.0098m³
    Packaging 1 - Weight (kg) 4.80kg
    Packaging 1 - Width (m) 0.33m
    Storage Temperature 0 °C to +40 °C
    ETIM 7.0 Key EC002254
    ETIM 8.0 Key EC002254
    ETIM 9.0 Key EC002254
    UNSPSC Key 39121721
