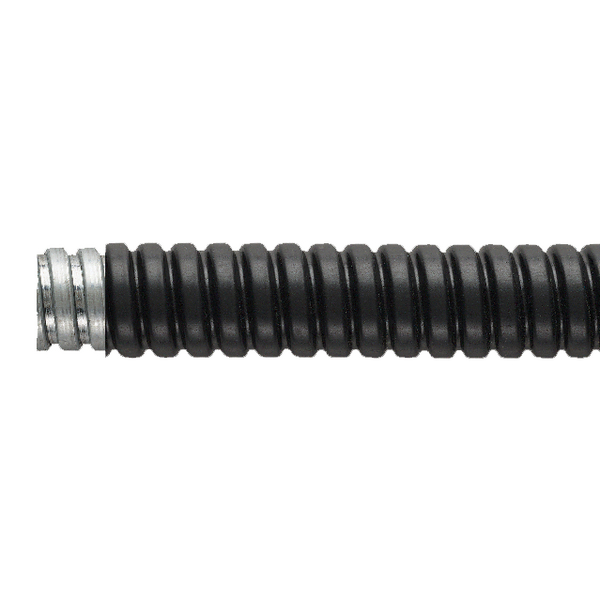

FPU63B-10M-GS/PUR-BK
Art.-No. 166-90676 | FPU63B-10M-GS/PUR-BK |  Details

Halogen Free.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyurethane resin (PUR)
    PART DESCRIPTION FPU63B-10M-GS/PUR-BK
    Pack Cont. 10.0m
    Package Content packed in reel
    Type FPU63B-10M
    Bending Radius min. (BR) 4.53"
    Bending Radius min. (R) 115mm
    Diameter (D) 57.5mm
    Nominal ∅ 2.5"
    Nominal ∅ 63mm
    Outside Ø (OD) 64.5mm
    Outside ∅ (OD) 2.54"
    Weight 1470g/m
    ∅ D 2.26"
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026561592
    Packaging 1 - Weight (kg) 14.7kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
