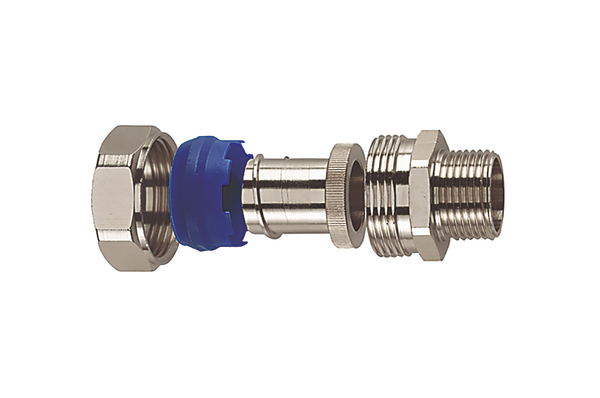

FSU25-M25-C-NPB/PA6-ML
Art.-No. 166-90541 | FSU25-M25-C-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION FSU25-M25-C-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Thread type metric
    Type FSU25-M25-C
    Variant Straight
    Bore Diameter (Imperial) 0.75"
    Bore Diameter (metric) 19.1
    Height (H) 33.0mm
    Length (L) 40.5mm
    Nominal ∅ 0.75"
    Nominal ∅ 25.0mm
    Thread Length (TL) 14mm
    Thread Length (TL) (Imperial) 0.55"
    Thread Size M25
    Wrenching Flat Size (Imperial) 1.04"
    Wrenching Flat Size (Metric) 26.5mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026553238
    UNSPSC Key 39131707
