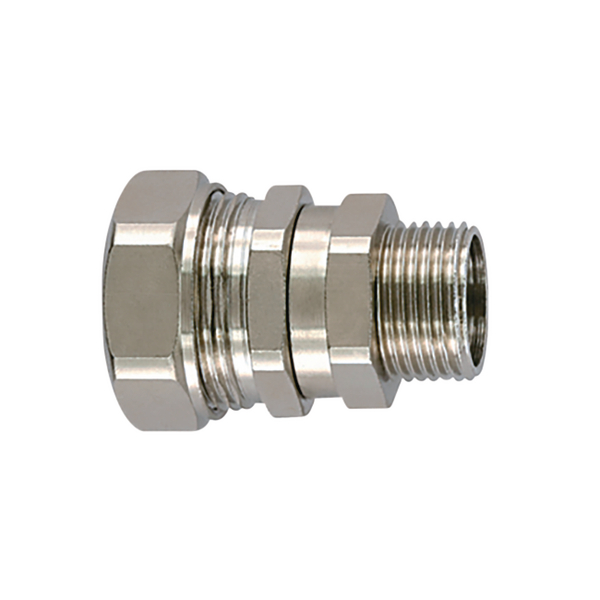

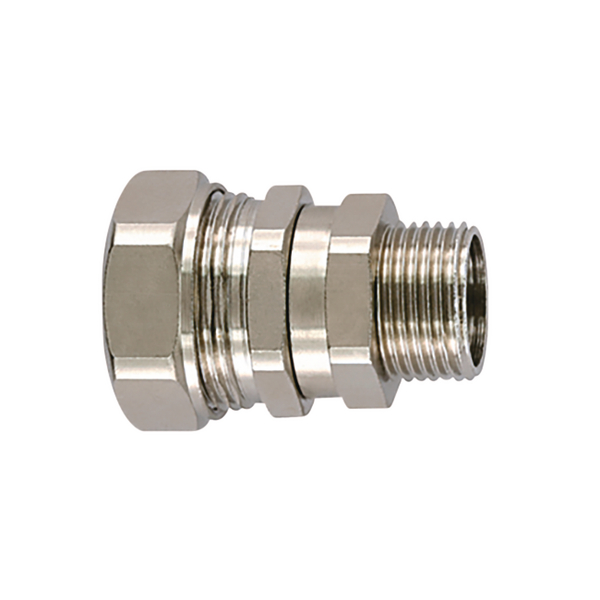

FSU32-M32-C-S-NPB-ML
Art.-No. 166-90511 | FSU32-M32-C-S-NPB-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    PART DESCRIPTION FSU32-M32-C-S-NPB-ML
    Pack Cont. 2pcs.
    Package Content packed in pack
    Thread type metric
    Type FSU32-M32-C-S
    Variant Straight
    Bore Diameter (Imperial) 1.02"
    Bore Diameter (metric) 26.0
    Height (H) 42.0mm
    Length (L) 56.9mm
    Nominal ∅ 1"
    Nominal ∅ 32.0mm
    Thread Length (TL) 13mm
    Thread Length (TL) (Imperial) 0.51"
    Thread Size M32
    Wrenching Flat Size (Imperial) 1.73"
    Wrenching Flat Size (Metric) 43.9mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026552934
    UNSPSC Key 39131707
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
