FSU50B-10M-GS/PVC-BK
Art.-No. 166-90657 | FSU50B-10M-GS/PVC-BK |  Details

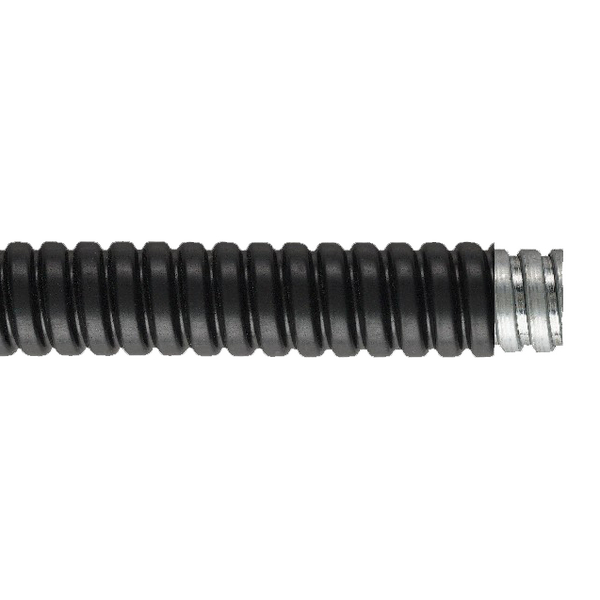

Highly durable spiral metallic conduit provides extra flexibility and delivers a high degree of compression strength and impact resistance.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION FSU50B-10M-GS/PVC-BK
    Pack Cont. 25.0m
    Package Content packed in reel
    Type FSU50B-10M
    Bending Radius min. (BR) 3.54"
    Bending Radius min. (R) 90mm
    Diameter (D) 48.4mm
    Nominal ∅ 1.5"
    Nominal ∅ 50.0mm
    Outside Ø (OD) 55.0mm
    Outside ∅ (OD) 2.16"
    Weight 1240g/m
    ∅ D 1.91"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -15 °C to +70 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026561400
    Packaging 1 - Weight (kg) 12.4kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
