FU50-10M-GS-ML
Art.-No. 166-90758 | FU50-10M-GS-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Galvanised Steel (GS)

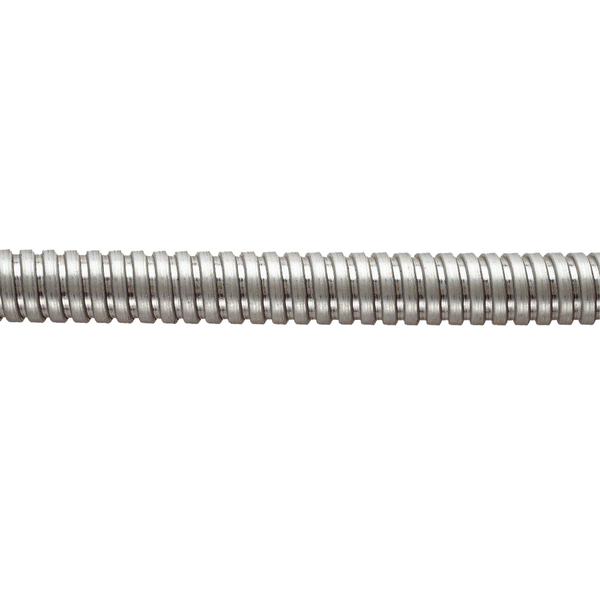

    PART DESCRIPTION FU50-10M-GS-ML
    Pack Cont. 10.0m
    Package Content packed in reel
    Type FU50-10M
    Bending Radius min. (BR) 4.53"
    Bending Radius min. (R) 90mm
    Diameter (D) 48.0mm
    Nominal ∅ 1.5"
    Nominal ∅ 50.0mm
    Outside Ø (OD) 43.2mm
    Outside ∅ (OD) 2.09"
    Weight 1240g/m
    ∅ D 1.89"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free Yes
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026570242
    Packaging 1 - Weight (kg) 12.4kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
