23/12/2024

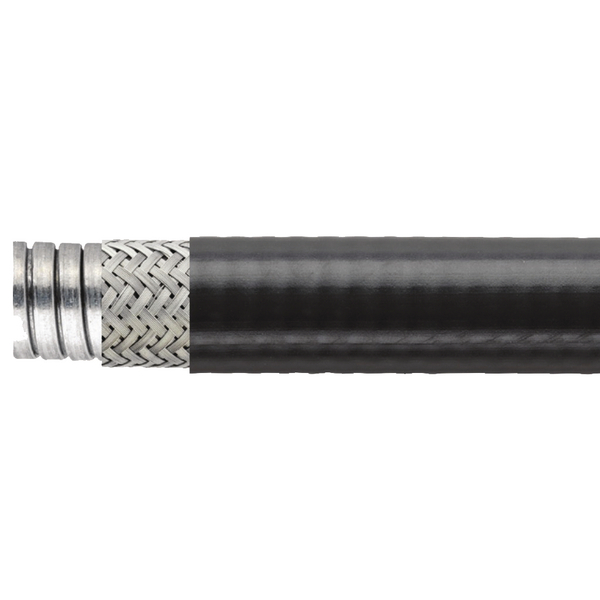

LTBRDP32B-25M-GS/PVC-BK
Art.-No. 166-90732 | LTBRDP32B-25M-GS/PVC-BK |  Details

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTBRDP32B-25M-GS/PVC-BK
    Pack Cont. 25.0m
    Package Content packed in reel
    Type LTBRDP32B-25M
    Bending Radius min. (R) 120mm
    Diameter (D) 26.5mm
    Length (L) 25.0m
    Nominal ∅ 1"
    Nominal ∅ 32.0mm
    Outside Ø (OD) 33.1mm
    Outside ∅ (OD) 1.30"
    Weight 732g/m
    ∅ D 1.04"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026562452
    Packaging 1 - Weight (kg) 18.3kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!

    Metal conduits >
