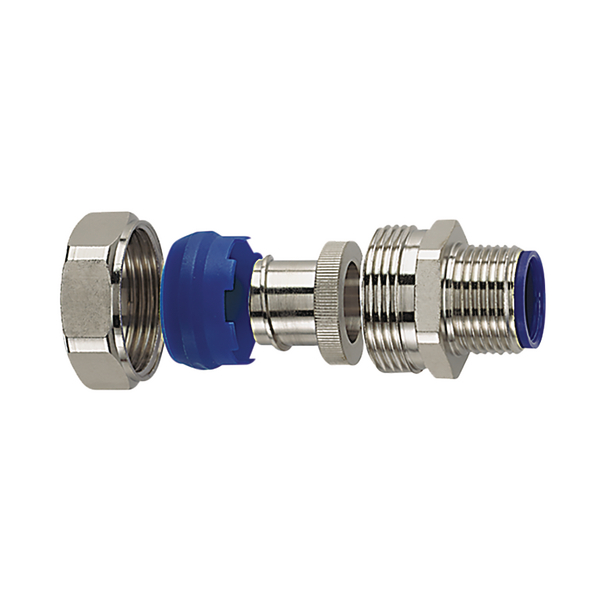

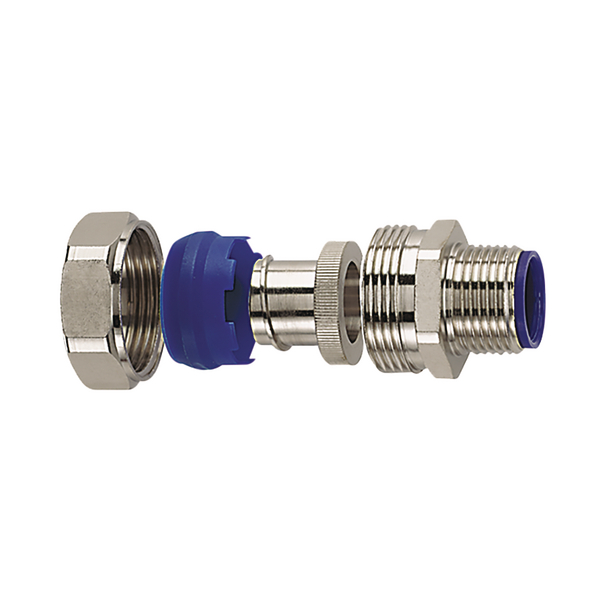

LTP20-M20-C-NPB/PA6-ML
Art.-No. 166-90609 | LTP20-M20-C-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTP20-M20-C-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Thread type metric
    Type LTP20-M20-C
    Variant Straight
    Bore Diameter (Imperial) 0.57"
    Bore Diameter (metric) 14.5
    Height (H) 29.0mm
    Length (L) 34.5mm
    Nominal ∅ 0.5"
    Nominal ∅ 20.0mm
    Thread Length (TL) 13mm
    Thread Length (TL) (Imperial) 0.51"
    Thread Size M20
    Thread Size (Imperial) 1/2 "
    Wrenching Flat Size (Imperial) 0.85"
    Wrenching Flat Size (Metric) 21.5mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026560694
    UNSPSC Key 39131707
