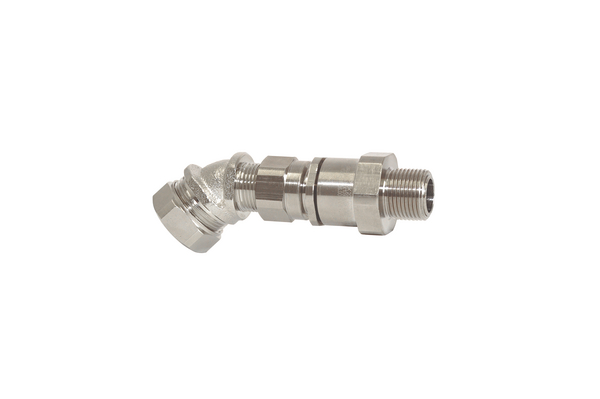

LTP25-M25-EXD-45-NPB/PA6-ML
Art.-No. 166-90584 | LTP25-M25-EXD-45-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTP25-M25-EXD-45-NPB/PA6-ML
    Pack Cont. 1pc.
    Package Content packed in pack
    Thread type metric
    Type LTP25-M25-EXD-45
    Variant 45°-elbow
    Bore Diameter (Imperial) 0.70"
    Bore Diameter (metric) 17.9
    Height (H) 35.0mm
    Length (L) 107.1mm
    Nominal ∅ 0.75"
    Nominal ∅ 25.0mm
    Thread Length (TL) 15.0mm
    Thread Length (TL) (Imperial) 0.59"
    Thread Size M25
    Wrenching Flat Size (Imperial) 4.22"
    Wrenching Flat Size (Metric) 107.1mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -60 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026560564
    UNSPSC Key 39131707
