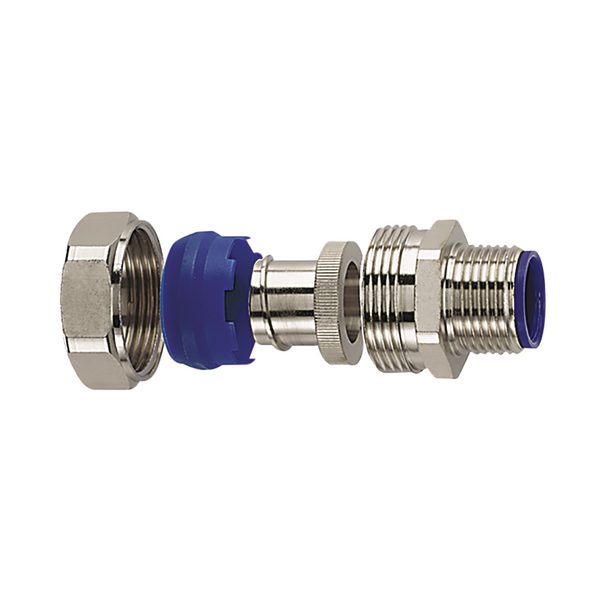

LTP32-M32-C-NPB/PA6-ML
Art.-No. 166-90611 | LTP32-M32-C-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTP32-M32-C-NPB/PA6-ML
    Pack Cont. 2pcs.
    Package Content packed in pack
    Thread type metric
    Type LTP32-M32-C
    Variant Straight
    Bore Diameter (Imperial) 0.97"
    Bore Diameter (metric) 24.6
    Height (H) 42.0mm
    Length (L) 46.8mm
    Nominal ∅ 1"
    Nominal ∅ 32.0mm
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Thread Size M32
    Thread Size (Imperial) 1 "
    Wrenching Flat Size (Imperial) 1.21"
    Wrenching Flat Size (Metric) 30.8mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026560717
    UNSPSC Key 39131707
