19/11/2024

LTPLFH20B-25M-GS/PO-BK
Art.-No. 166-90704 | LTPLFH20B-25M-GS/PO-BK |  Details

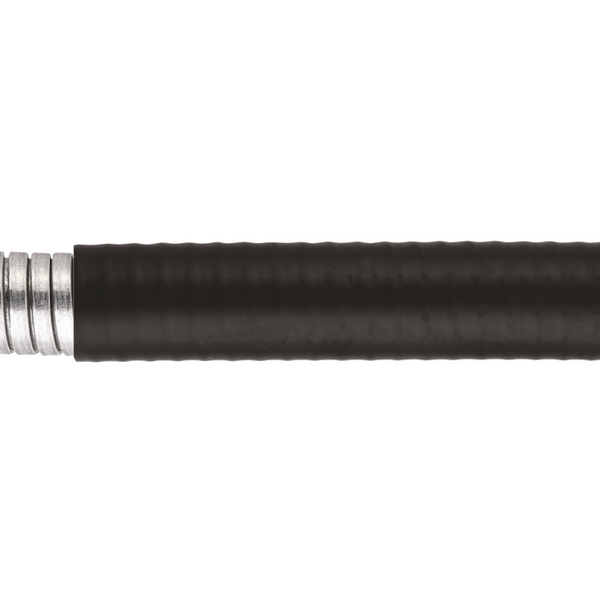

Smooth LFH cover resists oil and grease and possesses low fire hazard characteristics.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyolefin (PO)
    PART DESCRIPTION LTPLFH20B-25M-GS/PO-BK
    Pack Cont. 25.0m
    Package Content packed in reel
    Type LTPLFH20B-25M
    Bending Radius min. (BR) 3.94"
    Bending Radius min. (R) 100mm
    Diameter (D) 16.0mm
    Length (L) 25.0m
    Nominal ∅ 0.5"
    Nominal ∅ 20mm
    Outside Ø (OD) 21.1mm
    Outside ∅ (OD) 0.83"
    Weight 407g/m
    ∅ D 0.63"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free Yes
    Operating Temperature -25 °C to +90 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026562179
    Packaging 1 - Weight (kg) 10.18kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
