LTPPU20B-25M-GS/PUR-BK
Art.-No. 166-90716 | LTPPU20B-25M-GS/PUR-BK |  Details

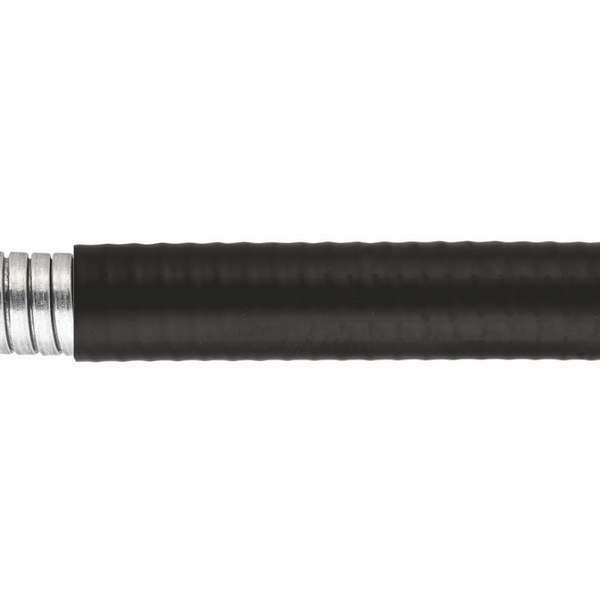

Flexible metallic conduit provides liquid-tight performance to IP66 + IP67 + IP68 + IP69 when used with LTP or LTPUL fittings.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyurethane resin (PUR)
    PART DESCRIPTION LTPPU20B-25M-GS/PUR-BK
    Pack Cont. 25.0m
    Package Content packed in reel
    Type LTPPU20B-25M
    Bending Radius min. (R) 65mm
    Diameter (D) 16.0mm
    Length (L) 25.0m
    Nominal ∅ 0.5"
    Nominal ∅ 20.0mm
    Outside Ø (OD) 21.1mm
    Outside ∅ (OD) 0.83"
    Weight 407g/m
    ∅ D 0.63"
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026562292
    Packaging 1 - Weight (kg) 10.18kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
