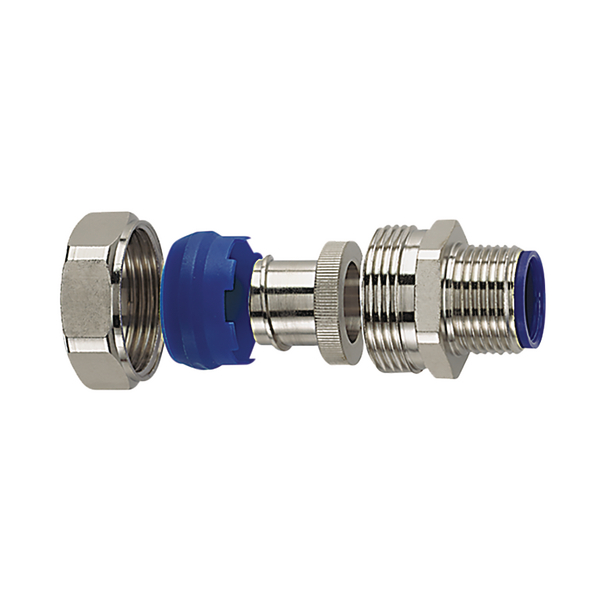

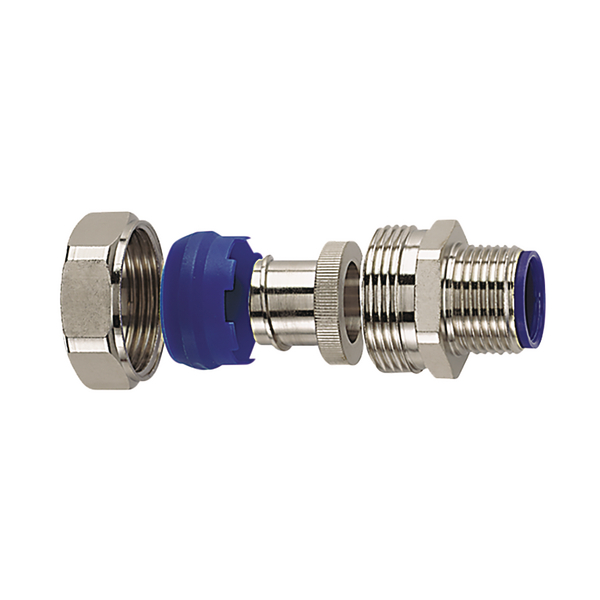

LTS031-FMC-M16-NPB/PA6-ML
Art.-No. 166-90396 | LTS031-FMC-M16-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS031-FMC-M16-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Thread type metric
    Type LTS031-FMC-M16
    Variant Straight
    Bore Diameter (Imperial) 0.34"
    Bore Diameter (metric) 8.6
    Height (H) 24.0mm
    Length (L) 29.8mm
    Nominal ∅ 0.31"
    Nominal ∅ 12.0mm
    Thread Length (TL) 10mm
    Thread Length (TL) (Imperial) 0.39"
    Thread Size M16
    Wrenching Flat Size (Imperial) 0.78"
    Wrenching Flat Size (Metric) 19.8mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520698
    UNSPSC Key 39131707
