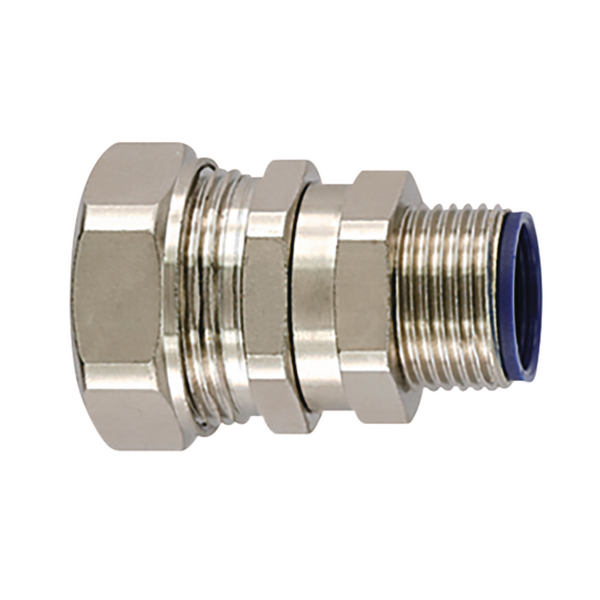

LTS038-SMC-M20-NPB/PA6-ML
Art.-No. 166-90411 | LTS038-SMC-M20-NPB/PA6-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS038-SMC-M20-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Thread type metric
    Type LTS038-SMC-M20
    Variant Straight
    Bore Diameter (Imperial) 0.42"
    Bore Diameter (metric) 10.7
    Height (H) 26.0mm
    Length (L) 41.0mm
    Nominal ∅ 0.38"
    Nominal ∅ 16.0mm
    Thread Length (TL) 10mm
    Thread Length (TL) (Imperial) 0.39"
    Thread Size M20
    Wrenching Flat Size (Imperial) 1.62"
    Wrenching Flat Size (Metric) 41.0mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520858
    UNSPSC Key 39131707
