19/11/2024

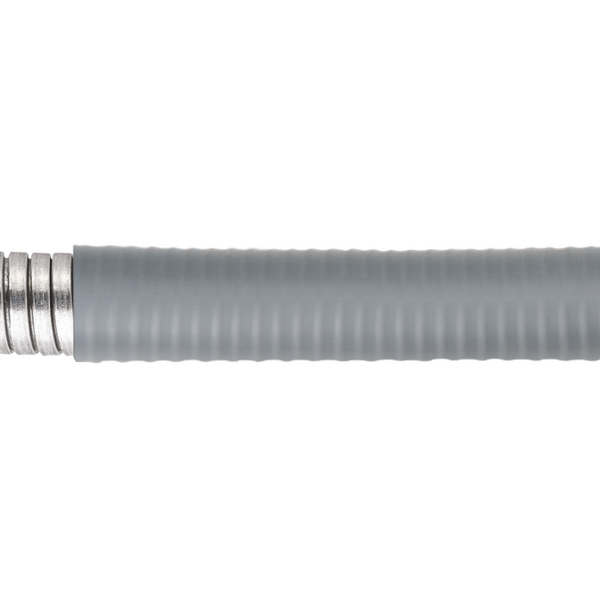

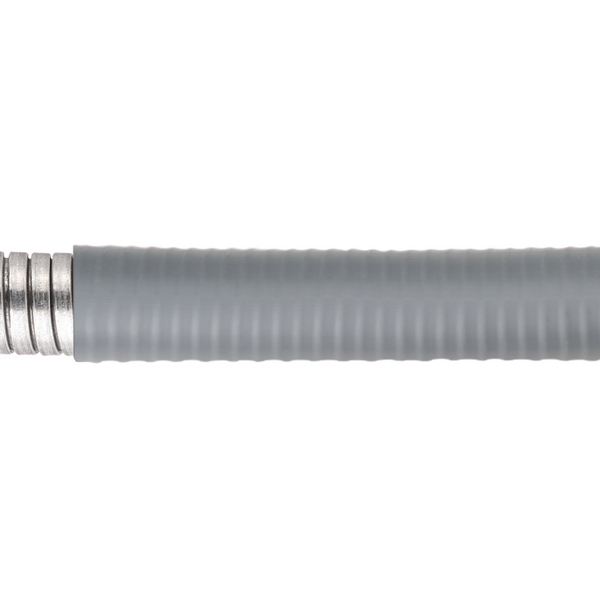

LTS1258-10M-GS/PVC-GY
Art.-No. 166-90391 | LTS1258-10M-GS/PVC-GY |  Details

UV resistant and suitable for outdoor use.

    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS1258-10M-GS/PVC-GY
    Pack Cont. 10.0m
    Package Content packed in reel
    Type LTS1258-10M
    Bending Radius min. (R) 175mm
    Diameter (D) 35.4mm
    Length (L) 10.0m
    Nominal ∅ 1.25"
    Nominal ∅ 40.0mm
    Outside Ø (OD) 41.8mm
    Outside ∅ (OD) 1.65"
    Weight 885g/m
    ∅ D 1.39"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520636
    Packaging 1 - Weight (kg) 8.85kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!

    Metal conduits >
