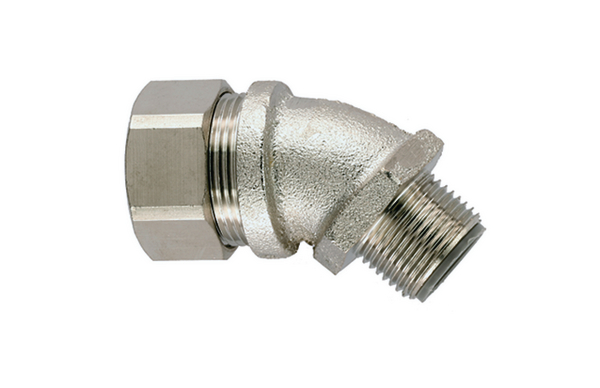

LTS200-45FMC-M63-NPB/PA6-ML
Art.-No. 166-90431 | LTS200-45FMC-M63-NPB/PA6-ML |  Details

Durable nickel plated brass material provides high mechanical strength and resistance to oil & corrosion.

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS200-45FMC-M63-NPB/PA6-ML
    Pack Cont. 1pc.
    Package Content packed in pack
    Thread type metric
    Type LTS200-45FMC-M63
    Variant 45°-elbow
    Bore Diameter (Imperial) 1.93"
    Bore Diameter (metric) 49.0
    Height (H) 76.0mm
    Length (L) 111.0mm
    Nominal ∅ 2.5"
    Nominal ∅ 63mm
    Thread Length (TL) 20mm
    Thread Length (TL) (Imperial) 0.79"
    Thread Size M63
    Wrenching Flat Size (Imperial) 3.58"
    Wrenching Flat Size (Metric) 91.0mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026521053
    UNSPSC Key 39131707
