LTS2000-10M-GS/PVC-BK
Art.-No. 166-90386 | LTS2000-10M-GS/PVC-BK |  Details

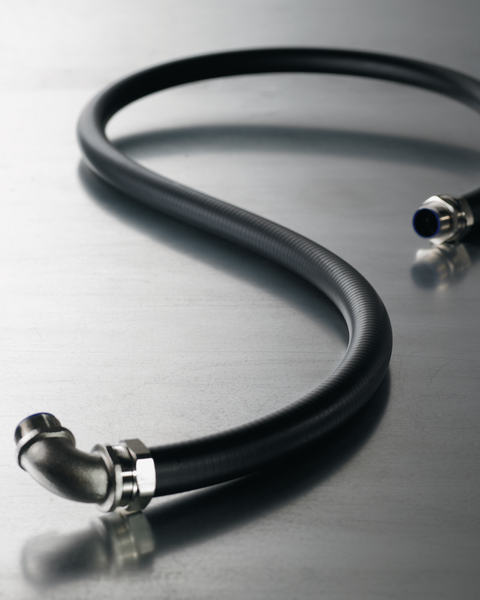

Spiral-wound galvanized steel core with an interlocking design delivers high degree of compression strength and impact resistance.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS2000-10M-GS/PVC-BK
    Pack Cont. 10.0m
    Package Content packed in reel
    Type LTS2000-10M
    Bending Radius min. (R) 280mm
    Diameter (D) 51.6mm
    Length (L) 10.0m
    Nominal ∅ 2.5"
    Nominal ∅ 63mm
    Outside Ø (OD) 59.7mm
    Outside ∅ (OD) 2.35"
    Weight 1470g/m
    ∅ D 2.03"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520582
    Packaging 1 - Weight (kg) 14.7kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
