Elbow Compression Fitting IP68 ø25mm
Art.-No. 166-32601 | LTS25-LTS25-NPB/PA6-ML Details

  • Multipart compression coupler including polyamide seal
  • Joins two conduits
  • Provides excellent tensile strength
Application Nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Metallic Fitting Type Coupler
PART DESCRIPTION LTS25-LTS25-NPB/PA6-ML
Pack Cont. 10pcs.
Package Content packed in bag
Product Family LTS-LTS Compression coupler, IP68
Product Group Fittings for metallic conduits with liquid-tight cover
Short Description Elbow Compression Fitting IP68 ø25mm
Type LTS25-LTS25
Type of connection Thread
Variant Straight

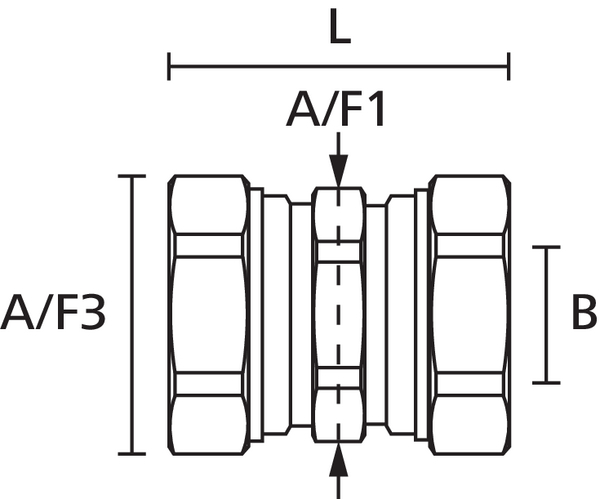

A/F Nut (A/F3) 35mm
Length (L) 46.9mm
Min. Bore Size (B) 18.0mm
Nominal ∅ 1"
Nominal ∅ 25mm
Weight/Unit 0.1kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant (Article 4 - 2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP69k (in conjunction with HGL fittings), IP66, IP68, IP67
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026308463
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00168
Packaging 1 - Weight (kg) 1.000001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001172
ETIM 8.0 Key EC001172
ETIM 9.0 Key EC001172
