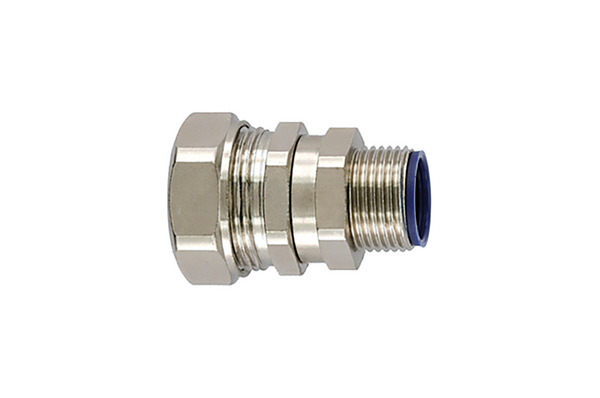

Swivel Thread Compression Fitting IP68 ø32mm M32
Art.-No. 166-32305 | LTS32-SMC-M32-NPB/PA6/PS-ML |  Details

HelaGuard LTS-SMC Swivel Compression Fitting.

    • Multipart compression fitting including polyamide seal
    • Provides excellent tensile strength
    • External thread swivels about main body even after tightening
    Add to watchlist
    Downloads CAD-Download
    Application External thread, nickel plated brass with internal plated steel circlip. Fulfils IP66, IP67, IP68 and IP69k.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
    Metallic Fitting Type Compression, straight
    PART DESCRIPTION LTS32-SMC-M32-NPB/PA6/PS-ML
    Pack Cont. 2pcs.
    Package Content packed in bag
    Product Family LTS-SMC Swivel thread compression fitting, IP68
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Swivel Thread Compression Fitting IP68 ø32mm M32
    Thread type metric
    Type LTS32-SMC-M32
    Type of connection Thread
    Variant Straight
    A/F Nut (A/F3) 42mm
    A/F Thread (A/F2) 38mm
    Height (H) 42mm
    Length (L) 56.9mm
    Lowest inner diameter 24.6mm
    Min. Bore Size (B) 24.6mm
    Nominal ∅ 1.25"
    Nominal ∅ 32mm
    Thread Length (TL) 13.0mm
    Thread Size M32
    Weight/Unit 0.198595kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66, IP67, IP68, IP69k
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026308289
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 2
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00166m³
    Packaging 1 - Weight (kg) 0.397191kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.216m
    Packaging 2 - Length (m) 0.3048m
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0176m³
    Packaging 2 - Width (m) 0.267m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
