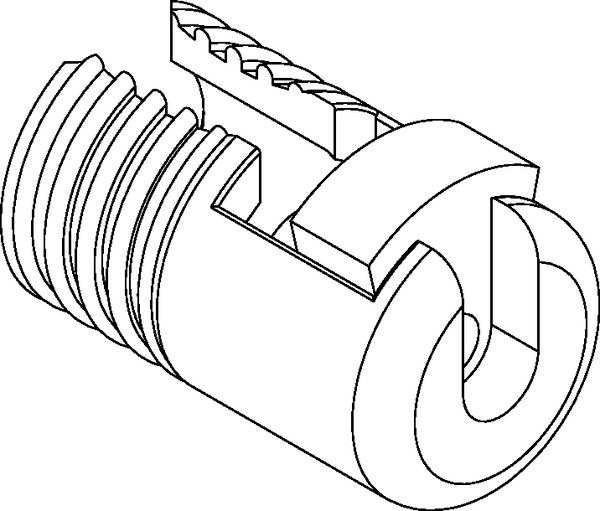

Divisible seals micro.
Art.-No. 874-00180 | EZA-t_10/3.0-3.5_micro-BK/GY Details

  • gas- and water-tight up to 0.5 bar
  • tool-less installation
  • optimally suited for retrofitting
  • perfect supplement for tight space conditions in cable distributors
  • suitable for speedpipe ground 7x1.5 and 10x2.0
Show more
Application With the separable single-pull seal, micro pipes can be quickly and safely sealed against gas- and water. Optimum use of limited space: The perfect supplement for tight space conditions in cable distributors. The sealing rubber is simply placed over the fibre optic cable, afterwards it is fixed with the plastic housing and the complete EZA-t micro is pushed onto the speedpipe. Individual sealing areas can easily be distinguished by the different colors of the sealing rubber.
Cable ∅ max 3.5mm
Cable ∅ min 3mm
Colour Grey (GY), Black (BK)
PART DESCRIPTION EZA-t_10/3.0-3.5_micro-BK/GY
Pack Cont. 50pcs.
Package Content packed in carton
Product Family EZA-t 10/3,0-3,5 micro
Product Group Divisible seals micro.
Type EZA-t_10/3.0-3.5_micro
Diameter (D) 10mm
Country of Origin DE
GTIN-13 / EAN 4031051038694
Packaging 1 - Qty 50
Packaging 1 - Type carton
Packaging 2 - Qty 600
Packaging 2 - Type carton
Packaging 3 - Qty 24000
Packaging 3 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
