House lead-ins HEO/MOB.
Art.-No. 874-00078 | Set_MOB_7-WH Details

  • splash water protection according to IP 65
  • cable fixed against tensile loadings (HEO)
  • gas- and water-tight sealing up to 0.5 bar
  • integrated deflection bend with a radius of 25 mm assuring an accurate lead of inside the wall

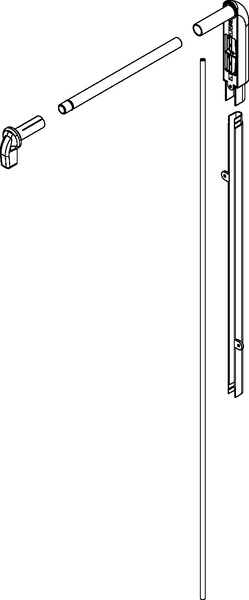

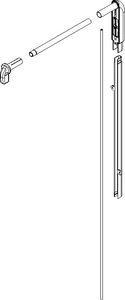

Application By means of an integrated connector with gas-stop, a speedpipe ground can be converted into a speedpipe indoor for the inside of the building. The gas-stop fixes and seals the cable up to 0.5 bar against gas and water in longitudinal direction. speedpipe and connection points are covered with inconspicuous, plain panels and thus are mechanically protected.
Application Method speedpipe ground 7x1.5
Colour White (WH)
Description without gas stop
PART DESCRIPTION Set_MOB_7-WH
Pack Cont. 1pcs.
Package Content packed in carton
Product Family Set MOB 7
Product Group House lead-ins HEO/MOB.
Type Set_MOB_7
Diameter (D) 7mm
Country of Origin DE
GTIN-13 / EAN 4031051034580
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 2 - Qty 120
Packaging 2 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
