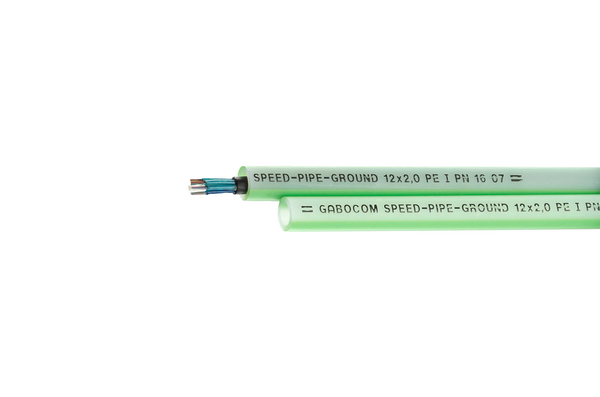

speedpipe ground.

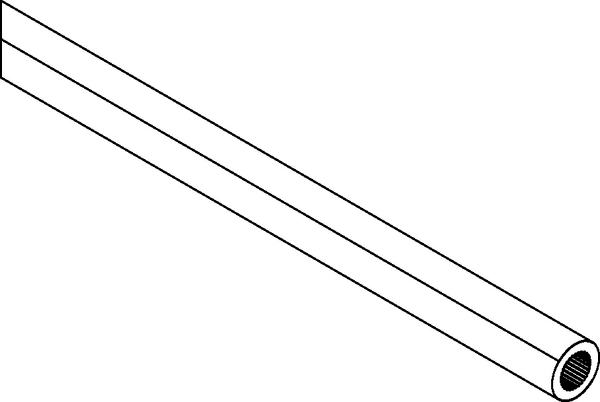

Art.-No. 871-00046 | speedpipe-ground_12x2.0-PE-HD-OG Details

  • transparent inspection windows show the occupation with cables
  • due to powerful colours the different dimensions are differentiated
  • suitable combination with subduct solutions due to appropriate accessories
  • delivered on a wooden one-way spool which is optimised for transport and installation
Application For the extension or new construction of passive infrastructure in fibre optic expansion. speedpipe ground are suitable for direct burying in all FTTx-sections as well as für branching-off from existing duct routes. Due to the dimensionally stable wall thickness made from first-class PE-HD protects each speedpipe ground duct system against the emerging ground pressure. Due to a higher vertex pressure in comparison to for example a PE-HD duct 50 × 4.6 the pipes stay in shape. Sliding ribs specified for any dimension ensure an optimal air cushion of the fibre optic during the blowing-in process, even after decades.
Cable ∅ max 6.8mm
Cable ∅ min 3mm
Colour Orange (OG)
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION speedpipe-ground_12x2.0-PE-HD-OG
Pack Cont. 2000m
Package Content packed in drum
Product Family speedpipe ground 12x2,0
Product Group speedpipe ground.
Type speedpipe-ground_12x2.0
Diameter (D) 12mm
Length (L) 2000m
Pressure Nominal (PN) PN 16
Wall (WT) 2mm
Weight/Unit 0.060kg
Country of Origin DE
GTIN-13 / EAN 4031051016234
Packaging 1 - Height (m) 1.2m
Packaging 1 - Length (m) 1.2m
Packaging 1 - Qty 2000
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 0.52704
Packaging 1 - Weight (kg) 143kg
Packaging 1 - Width (m) 0.366m
Packaging 2 - Height (m) 1.248m
Packaging 2 - Length (m) 1.2m
Packaging 2 - Qty 6000
Packaging 2 - Type pallet
Packaging 2 - Volume (m³) 1.7971
Packaging 2 - Weight (kg) 445kg
Packaging 2 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
