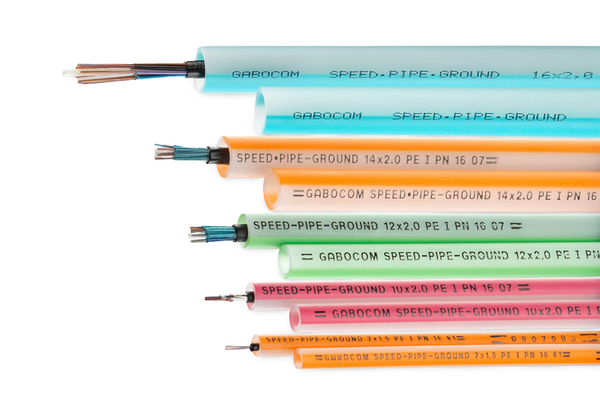

speedpipe ground.
Art.-No. 871-00106
| speedpipe-ground_20x2.5-PE-HD-PK
|
Details
- transparent inspection windows show the occupation with cables
- due to powerful colours the different dimensions are differentiated
- suitable combination with subduct solutions due to appropriate accessories
- delivered on a wooden one-way spool which is optimised for transport and installation
More products in this product group:
| Application | For the extension or new construction of passive infrastructure in fibre optic expansion. speedpipe ground are suitable for direct burying in all FTTx-sections as well as für branching-off from existing duct routes. Due to the dimensionally stable wall thickness made from first-class PE-HD protects each speedpipe ground duct system against the emerging ground pressure. Due to a higher vertex pressure in comparison to for example a PE-HD duct 50 × 4.6 the pipes stay in shape. Sliding ribs specified for any dimension ensure an optimal air cushion of the fibre optic during the blowing-in process, even after decades. |
| Cable ∅ max | 12.5mm |
| Cable ∅ min | 8mm |
| Colour | Pink (PK) |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | speedpipe-ground_20x2.5-PE-HD-PK |
| Pack Cont. | 1400m |
| Package Content packed in | drum |
| Product Family | speedpipe ground 20x2,5 |
| Product Group | speedpipe ground. |
| Type | speedpipe-ground_20x2.5 |
| Country of Origin | DE |
| GTIN-13 / EAN | 4031051013493 |
| Packaging 1 - Height (m) | 1.2m |
| Packaging 1 - Length (m) | 1.2m |
| Packaging 1 - Qty | 1400 |
| Packaging 1 - Type | drum |
| Packaging 1 - Volume (m³) | 1.008m³ |
| Packaging 1 - Weight (kg) | 215.6kg |
| Packaging 1 - Width (m) | 0.7m |
| Packaging 2 - Height (m) | 0.85m |
| Packaging 2 - Length (m) | 1.2m |
| Packaging 2 - Qty | 1400 |
| Packaging 2 - Type | pallet |
| Packaging 2 - Volume (m³) | 1.224m³ |
| Packaging 2 - Weight (kg) | 231.6kg |
| Packaging 2 - Width (m) | 1.2m |
