speedpipe indoor.

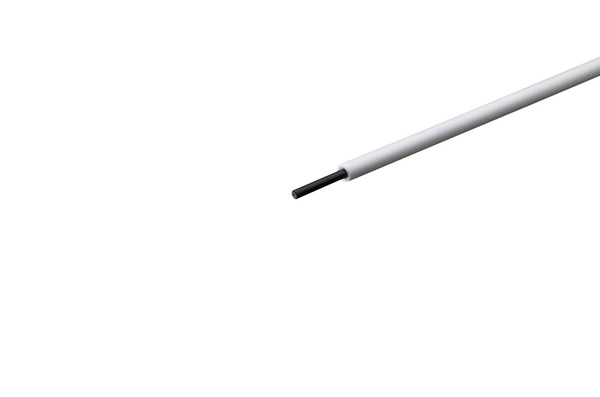

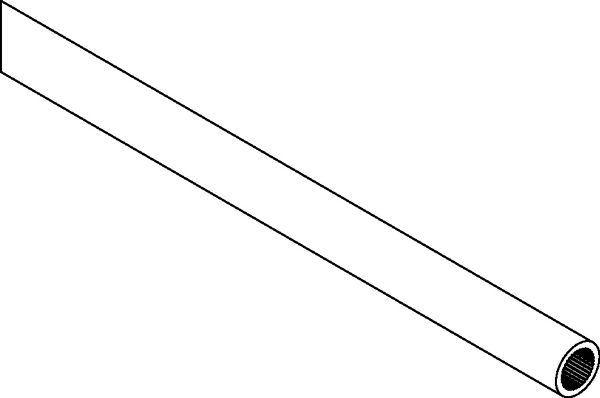

Art.-No. 873-50004 | speedpipe-indoor_5x0.75-PE-HD-WH Details

Package size
Application The speedpipe indoor were developed by gabocom especially for the application inside buildings. They are not flame spreading and were tested in accordance with the standards DIN EN 13501-1, DIN EN 60332-1-2 and regarding the absence of halogens according to DIN EN 60684-2. Furthermore, the speedpipe indoor were tested in accordance with DIN EN 61386-22 (VDE 0605) for a clear definition of their laying.
Colour White (WH)
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION speedpipe-indoor_5x0.75-PE-HD-WH
Pack Cont. 400m
Package Content packed in carton
Product Family Fire protection and safe networks inside the building.
Product Group speedpipe indoor.
Type speedpipe-indoor_5x0.75
Diameter (D) 5mm
Length (L) 400m
Pressure Nominal (PN) PN 16
Wall (WT) 0.75mm
Weight/Unit 0.011kg
CE Certification Yes
GTIN-13 / EAN 4031051035112
Packaging 1 - Height (m) 0.318m
Packaging 1 - Length (m) 0.318m
Packaging 1 - Qty 400
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.02973
Packaging 1 - Weight (kg) 5.881kg
Packaging 1 - Width (m) 0.294m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
