Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion.

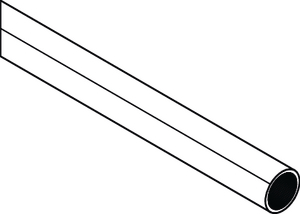

Art.-No. 871-00039
| speedpipe_16x1.5-PE-HD-GN
|
Details
- small outer diameter for optimum exploitation of the existing duct capacity
- transparent inspection windows show the occupation with cables
- can also be blown into occupied PE-HD-protective pipes (Ø 40, 50, 63 mm)
- reusable even after blowing out installed fibre optic cables - like on the first day
- sliding ribs specified for any dimension for an optimal air cushion of the optical fibre during the blowing in process
- available in various dimensions in strong colours for better distinction
- they are delivered on a wooden one-way spool which is optimised for transport and installation
More products in this product group:
| Application | speedpipe for subduct solutions are blown into PE-HD ducts over long distances. Free space within occupied or empty duct systems can be used to the maximum. Simultaneously the bigger inner diameter, compared to microducts that can be layed in the ground, offers space for high fibre capacities - space that can be exploited for every single speedpipe even after decades. |
| Cable ∅ max | 11mm |
| Cable ∅ min | 7.5mm |
| Colour | Green (GN) |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | speedpipe_16x1.5-PE-HD-GN |
| Pack Cont. | 1200m |
| Package Content packed in | drum |
| Product Family | speedpipe 16x1,5 |
| Product Group | Fast and cheap: Use existing duct systems with speedpipe and save civil engineering costs for the broadband expansion. |
| Type | speedpipe_16x1.5 |
| Country of Origin | DE |
| GTIN-13 / EAN | 4031051032814 |
| Packaging 1 - Height (m) | 1.2m |
| Packaging 1 - Length (m) | 1.2m |
| Packaging 1 - Qty | 1200 |
| Packaging 1 - Type | drum |
| Packaging 1 - Volume (m³) | 0.52704m³ |
| Packaging 1 - Weight (kg) | 102.2kg |
| Packaging 1 - Width (m) | 0.366m |
| Packaging 2 - Height (m) | 1.248m |
| Packaging 2 - Length (m) | 1.2m |
| Packaging 2 - Qty | 3600 |
| Packaging 2 - Type | pallet |
| Packaging 2 - Volume (m³) | 1.7971m³ |
| Packaging 2 - Weight (kg) | 322.6kg |
| Packaging 2 - Width (m) | 1.2m |
