speedpipe bundles ground tight covered.
Art.-No. 872-00220
| SRV-G_2x12_tc-PE-HD-OG
|
Details
- resistant to the effects of the surrounding soil
- easy and time saving branching off without any special tools
- the combination of smaller dimensions with an internal single duct of a greater diameter is suitable for FTTB/H as well as for FTTN/C
- suitable for all common types of laying
- supplied on a wooden one-way spool
More products in this product group:
speedpipe-ground_12x2.0
871-00045| Application | speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle. |
| Colour | Orange (OG) |

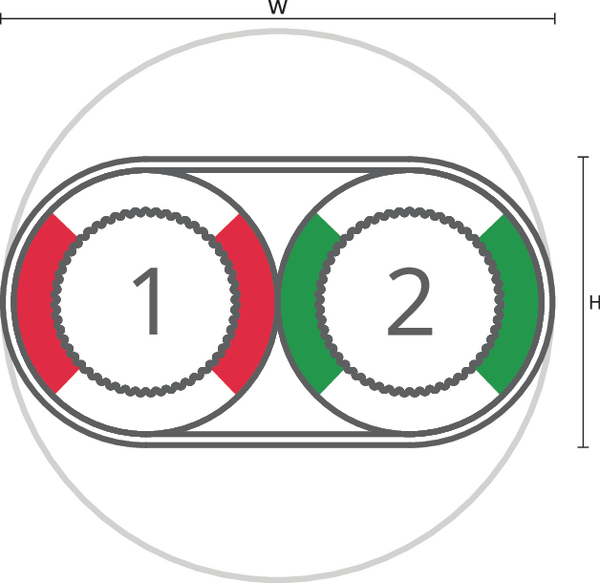

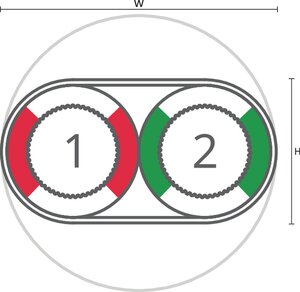

| Description | 2 speedpipe ground 12x2.0 |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | SRV-G_2x12_tc-PE-HD-OG |
| Pack Cont. | 650m |
| Package Content packed in | drum |
| Product Family | SRV-G 2x12 tc |
| Product Group | speedpipe bundles ground tight covered. |
| Type | SRV-G_2x12_tc |

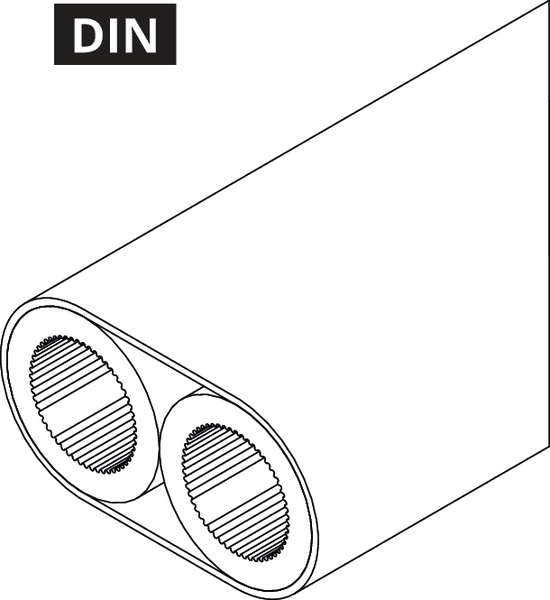

| Variant | DIN |
| Country of Origin | DE |
| GTIN-13 / EAN | 4031051030193 |
| Packaging 1 - Height (m) | 1.2m |
| Packaging 1 - Length (m) | 1.2m |
| Packaging 1 - Qty | 650 |
| Packaging 1 - Type | drum |
| Packaging 1 - Volume (m³) | 0.52704m³ |
| Packaging 1 - Weight (kg) | 127kg |
| Packaging 1 - Width (m) | 0.366m |
| Packaging 2 - Height (m) | 1.248m |
| Packaging 2 - Length (m) | 1.2m |
| Packaging 2 - Qty | 1950 |
| Packaging 2 - Type | pallet |
| Packaging 2 - Volume (m³) | 1.7971m³ |
| Packaging 2 - Width (m) | 1.2m |
