Thick-walled speedpipe ground single ducts in connection: SRV-G
Art.-No. 872-00017 | SRV-G_32/3x12-PE-HD-OG Details

Application The speedpipe bundles ground SRV-G consist of varicoloured speedpipe ground which are bundled by a flexible jacket pipe. The speedpipe bundle ground can be pulled into existing PE-HD ducts for ensuring maximum occupation.
Colour Orange (OG)

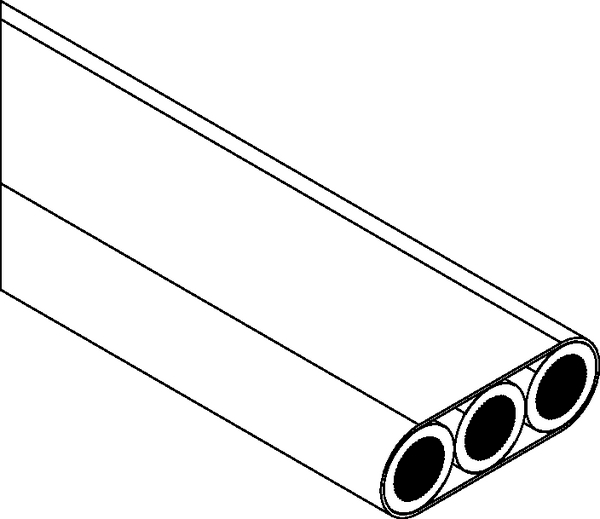

Description 3 speedpipe ground 12x2.0
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION SRV-G_32/3x12-PE-HD-OG
Pack Cont. 400m
Package Content packed in drum
Product Family SRV-G 32/3x12
Product Group Thick-walled speedpipe ground single ducts in connection: SRV-G
Type SRV-G_32/3x12
Variant gabo
Diameter (D) 32mm
Length (L) 400m
Wall (WT) 0.5mm
Weight/Unit 0.242kg
Country of Origin DE
GTIN-13 / EAN 4031051012038
Packaging 1 - Height (m) 1.2m
Packaging 1 - Length (m) 1.2m
Packaging 1 - Qty 400
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 0.52704
Packaging 1 - Weight (kg) 119.8kg
Packaging 1 - Width (m) 0.366m
Packaging 2 - Height (m) 1.248m
Packaging 2 - Length (m) 1.2m
Packaging 2 - Qty 1200
Packaging 2 - Type pallet
Packaging 2 - Volume (m³) 1.7971
Packaging 2 - Weight (kg) 375.4kg
Packaging 2 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
