thick-walled speedpipe ground single ducts in connection: SRV-G
Art.-No. 872-00004
| SRV-G_40/14x7-PE-HD-OG
|
Details
More products in this product group:
speedpipe-ground_7x1.5
871-00082| Application | The higher permissible tensile strength of speedpipe ground especially pays off in case of a tight relation of the existing capacity to the outer diameter of the speedpipe. Nevertheless for being able to use the remaining space, a cutting device removes the lose duct coat before the pulling-in process. A pulling head that is mounted directly at the ends of the speedpipe fixes the single tubes and guarantees the optimum use of force – without taking up more space inside the duct. Thus also bundles with more than eight speedpipe inside or additional single tubes can be linearly fed into the duct system. |
| Colour | Orange (OG) |

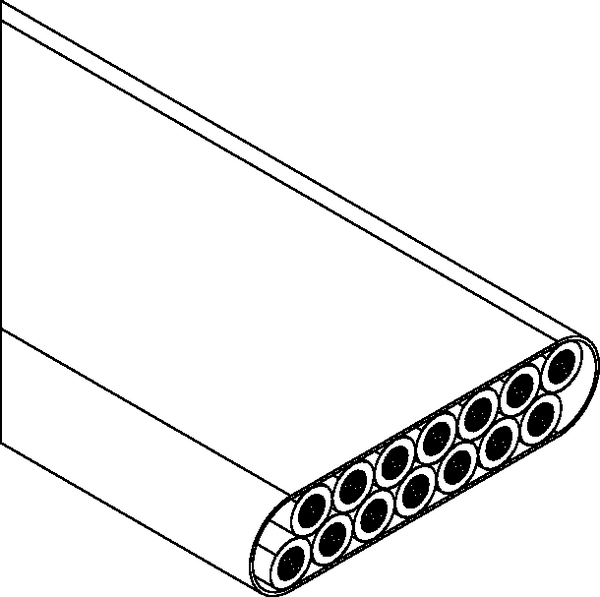

| Description | 14 speedpipe ground 7x1.5 |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | SRV-G_40/14x7-PE-HD-OG |
| Pack Cont. | 3500m |
| Package Content packed in | drum |
| Product Family | SRV-G 40/14x7 |
| Product Group | thick-walled speedpipe ground single ducts in connection: SRV-G |
| Type | SRV-G_40/14x7 |
| Variant | gabo |
