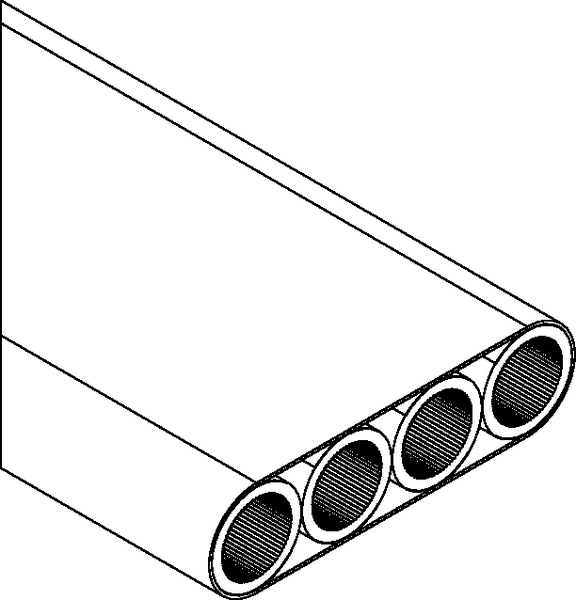

Thick-walled speedpipe ground single ducts in connection: SRV-G
Art.-No. 872-00023 | SRV-G_50/4x16-PE-HD-OG |  Details

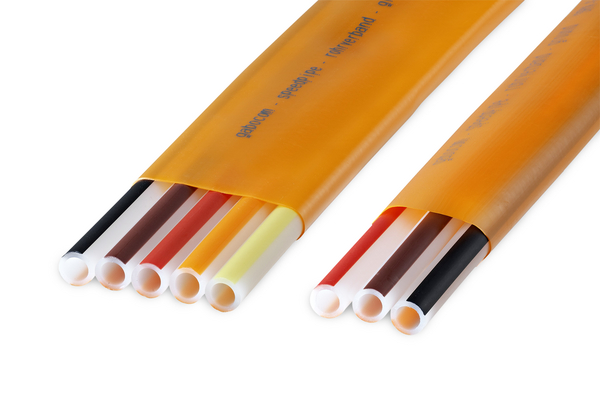

speedpipe bundles ground SRV-G for in-duct installations.

    Add to watchlist
    Application The speedpipe bundles ground SRV-G consist of varicoloured speedpipe ground which are bundled by a flexible jacket pipe. The speedpipe bundle ground can be pulled into existing PE-HD ducts for ensuring maximum occupation.
    Colour Orange (OG)
    Description 4 speedpipe ground 16x2.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_50/4x16-PE-HD-OG
    Pack Cont. 2100m
    Package Content packed in drum
    Product Family SRV-G 50/4x16
    Product Group Thick-walled speedpipe ground single ducts in connection: SRV-G
    Type SRV-G_50/4x16
    Variant gabo
    Diameter (D) 50mm
    Length (L) 2100m
    Wall (WT) 0.5mm
    Weight/Unit 0.426kg
    Country of Origin DE
    GTIN-13 / EAN 4031051423087
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 2100
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1244.6kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
