Bundle connectors.

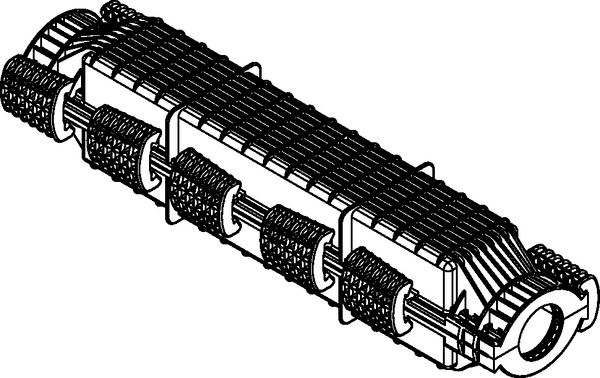

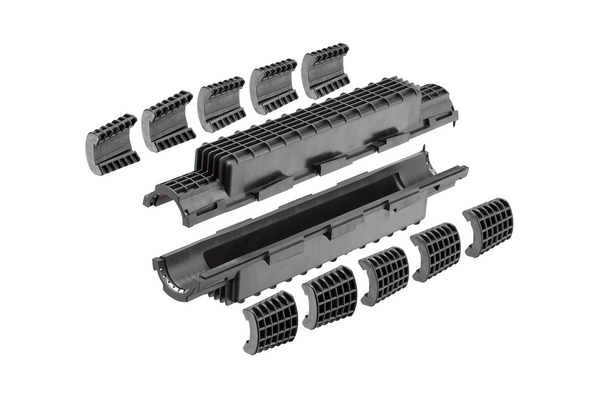

Art.-No. 874-00051 | SRV-M_50_MAXI-BK Details

  • gas- and water-tight up to 0.5 bar
  • reusable and applicable for direct burying
  • to connect the speedpipe bundles ground SRV-G inside stiffeners SHi needed on both sides
Package size
Application The SRV-M and SRV-M MAXI serve for the pressure-tight protection of the connecting points of two buried speedpipe bundles against the penetration of gas and water through the duct gaps. In case of an in-duct solution with jacket pipes up to Ø 63 mm or at the transition to a buried bundle, the elements connect the complete duct system gas-, pressure- and water-tight as well. The split SRV-M MAXI for SRV-G tc are suitable for the pressure-tight connection of speedpipe bundles ground SRV-G tc.
Application Method Application for tubes with max Ø 50 cm
Colour Black (BK)
PART DESCRIPTION SRV-M_50_MAXI-BK
Pack Cont. 10pcs.
Package Content packed in carton
Product Family SRV-M 50 MAXI
Product Group Bundle connectors.
Type SRV-M_50_MAXI
Diameter (D) 50mm
Length (L) 550mm
Country of Origin DE
GTIN-13 / EAN 4031051014513
Packaging 1 - Qty 10
Packaging 1 - Type carton
Packaging 2 - Qty 80
Packaging 2 - Type pallet
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
