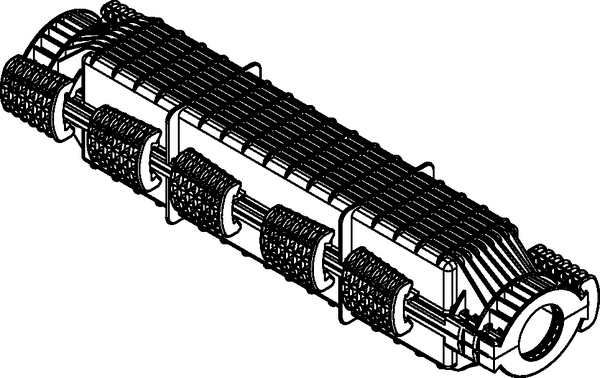

Bundle connectors.
Art.-No. 874-00054
| SRV-M_MAXI_fuer_SRV-G_tc_Gr._1-BK
|
Details
- gas- and water-tight up to 0.5 bar
- reusable and applicable for direct burying
- to connect the speedpipe bundles ground SRV-G inside stiffeners SHi needed on both sides
More products in this product group:
| Application | The SRV-M and SRV-M MAXI serve for the pressure-tight protection of the connecting points of two buried speedpipe bundles against the penetration of gas and water through the duct gaps. In case of a in-duct solution with jacket pipes up to Ø 63 mm or at the transition to a buried bundle, the connectors connect the complete duct system gas-, pressure- and water-tight as well. The split SRV-M MAXI for SRV-G tc are suitable for the pressure-tight connection of speedpipe bundles ground SRV-G tc. |
| Application Method | Application for SRV-G 7×7 tc, SRV-G 8×7 + 1×12 tc, SRV-G 12×7 tc, SRV-G 12×7 + 1×14 tc, SRV-G 12×7 + 3×14 tc, SRV-G 14×7 tc, SRV-G 18×7 tc, SRV-G 22×7 + 1×12 tc, SRV-G 24×7 tc, SRV-G 24×7 + 1×14 tc, SRV-G 7×10 tc, SRV-G 12×10 tc, SRV-G 12×10 + 1×16 tc, SRV-G 14×10 tc, SRV-G 3×12 tc, SRV-G 7×12 tc, SRV-G 3×14 tc, SRV-G 4×14 tc, SRV-G 5×14 tc, SRV-G 7×14 tc, SRV-G 7×14 + 1×20 tc, SRV-G 3×16 tc, SRV-G 4×16 tc, SRV-G 6×16 tc, SRV-G 7×16 tc, SRV-G 3×20 tc |
| Colour | Black (BK) |
| PART DESCRIPTION | SRV-M_MAXI_fuer_SRV-G_tc_Gr._1-BK |
| Pack Cont. | 2pcs. |
| Package Content packed in | carton |
| Product Family | SRV-M MAXI for SRV-G tc size 1 |
| Product Group | Bundle connectors. |
| Type | SRV-M_MAXI_fuer_SRV-G_tc_Gr._1 |
