Branch supports.

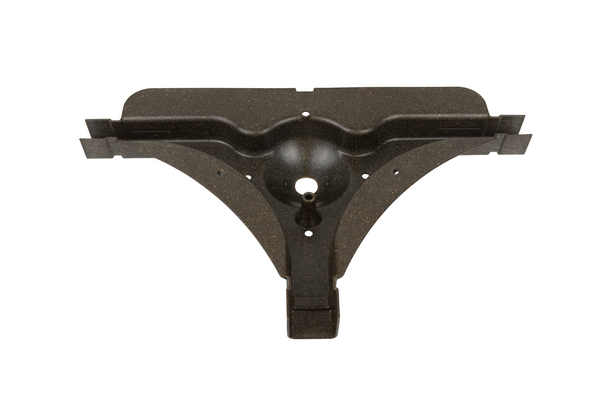

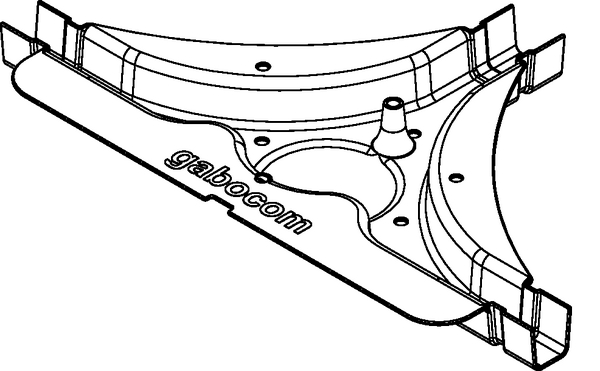

Art.-No. 874-00238 | TBS-BK |  Details

TBS branching aids with SRV-G tc and EZA-t for guided branching.

    • can be fitted with a ball marker or markerpeg
    • minimum bending radius of the speedpipe is automatically maintained, ensuring safe blowing-in
    Add to watchlist

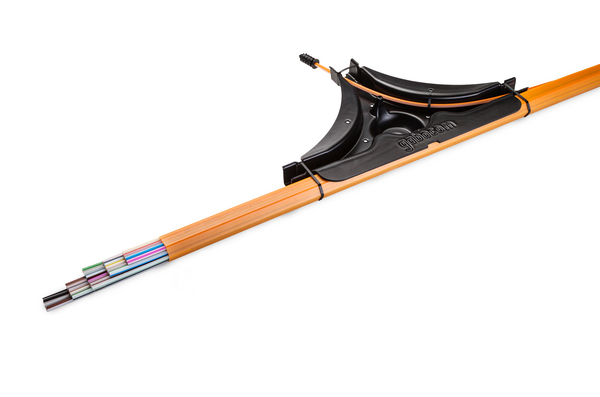

    Application Single speedpipe ground can be branched off the speedpipe bundle ground in a safe bend to the customer or to the distribution box by using the T-branch-support TBS or the L-branch support LBS. The branch supports are connected with the speedpipe bundle ground and the branching speedpipe ground by means of cable straps. The use of a marking system like the markerpeg or the ball marker facilitates the subsequent localisation of the branch.
    Colour Black (BK)
    PART DESCRIPTION TBS-BK
    Pack Cont. 12pcs.
    Package Content packed in carton
    Product Family TBS
    Product Group Branch supports.
    Type TBS
    Country of Origin DE
    GTIN-13 / EAN 4031051024239
    Packaging 1 - Qty 12
    Packaging 1 - Type carton
    Packaging 2 - Qty 108
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
