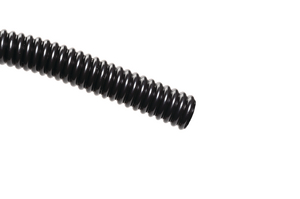

Flexible PTFE convoluted tubing
Art.-No. 169-23009
| CTT-09 NSA935805-09-PTFE-BK
|
Details
- Excellent resistance to almost all chemicals
- Resistant to low and high temperatures
- Very good tensile strength
- Very good fatigue life
- Superior dielectric strength and anti-adhesive properties
- Protects cables from extreme temperatures, fire, moisture
- Protects cables from corrosion, vibration and abrasion
More products in this product group:
| Application | CTT conduits are used in many industries with very demanding environments, including aviation, aerospace, chemical, pharmaceutical, ship building, food processing and electrical industry. |
| Colour | Black (BK) |
| Key product features | high temperature resistant |
| Material | Polytetrafluoroethylene (PTFE) |
| PART DESCRIPTION | CTT-09 NSA935805-09-PTFE-BK |
| Pack Cont. | 50.0m |
| Package Content packed in | reel |
| Product Family | CTT PTFE Conduits |
| Product Group | Non-Metallic Conduits |
| Short Description | Flexible PTFE convoluted tubing |
| Type | CTT-09 NSA935805-09 |
| Variant | Unslit |
|
|
| Bending Radius min. (BR) | 1.26" |
| Bending Radius min. (R) | 32mm |
| Diameter (D) | 10.6mm |
| Inner Diameter D (Imperial) | 0.28" |
| Inside Ø (ID) | 7.0mm |
| Length (L) | 50.0m |
| Nominal ∅ | 9.0mm |
| Nominal ∅ | 0.35" |
| Outside Ø (OD) | 10.6mm |
| Outside ∅ (OD) | 0.42" |
| Outside ∅ (OD2) | 10.6mm |
| Outside ∅ (OD2) | 0.42" |
| Pitch (P) | 0.134" |
| Pitch (P) | 3.4mm |
| Weight | 44g/m |
| Weight/Unit | 0.035kg |
| ∅ (D2) | 7.0mm |
| ∅ D | 0.42" |
| ∅ D2 | 0.28" |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | FAR 25 |
| Halogen-free | No |
| Hazardous Goods | No |
| Oil resistant | No |
| Operating Temperature | -65 °C to +260 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | NSA 935805 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026402949 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.235m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00828m³ |
| Packaging 1 - Weight (kg) | 1.75kg |
| Packaging 1 - Width (m) | 0.235m |
| Reel Length | 50m |
| Reel Length | 164.0ft |
