HG-DC1250-PP-BK
Art.-No. 166-90987
| HG-DC1250-PP-BK
|
Details
- Double slit conduit opening offers easy access during installation and maintenance.
- Overlapping conduit design increases mechanical protection and eliminates unintentional exposure of wires caused by motion, vibration or when routed around corners.
- Material is easy to use and cut - reduces installation time and labor costs.
- Good impact strength, recovers quickly if crushed.
- Flexible, abrasion resistant and durable for a variety of applications.
Colour | Black (BK) |

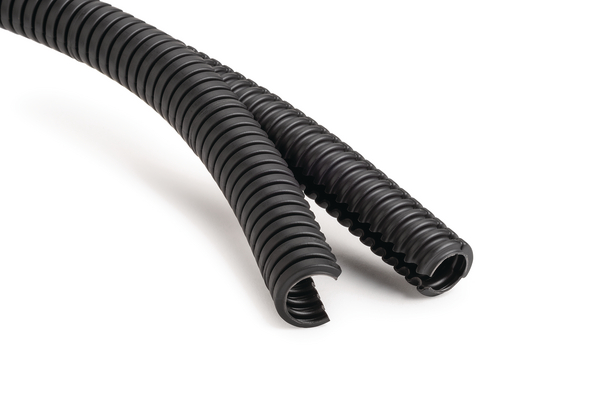

Description | A standard weight polypropylene corrugated conduit with two slit openings that eases installation and maintenance of wire and cable bundles. The interlocking construction is excellent for retrofitting projects. Polypropylene material is typically used in building construction, particulaly where buried in concrete or plaster. |
Material | Polypropylene (PP) |
PART DESCRIPTION | HG-DC1250-PP-BK |
Pack Cont. | 25m |
Package Content packed in | reel |

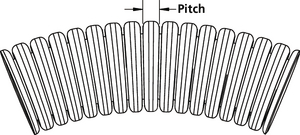

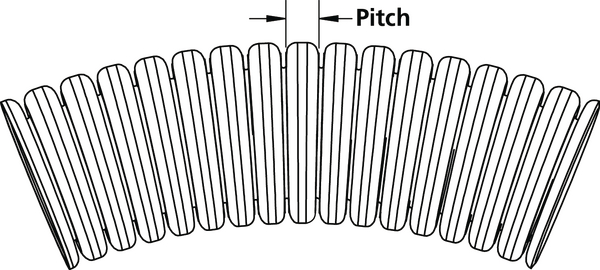

Pitch Type | coarse |
Type | HG-DC1250 |
CE Certification | No |
CSA Certified | No |
Flammability | EN IEC 61386 |
Halogen-free | No |
Operating Temperature | -20 °C to +90 °C |
ROHS compliant | Yes |
Self extinguishing | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
