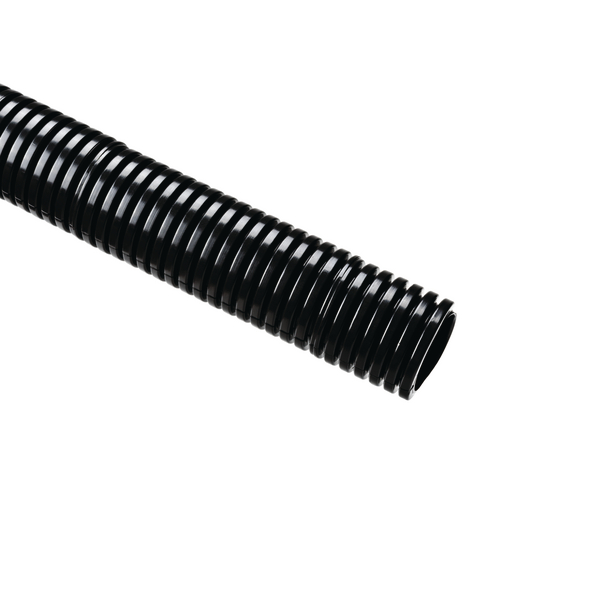

HG-SW2000-PA6-BK
Art.-No. 166-90463 | HG-SW2000-PA6-BK |  Details

PA6 material is easy to use and cut; reduces installation time and labor costs.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-SW2000-PA6-BK
    Pack Cont. 7.62m
    Package Content packed in reel
    Type HG-SW2000
    Inside Ø (ID) 56.3mm
    Length (L) 7.6m
    Nominal ∅ 2.63"
    Nominal ∅ 67mm
    Outside Ø (OD) 67.2mm
    Outside ∅ (OD) 2.65"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E246572
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026534534
    UNSPSC Key 39131601
