17/07/2024

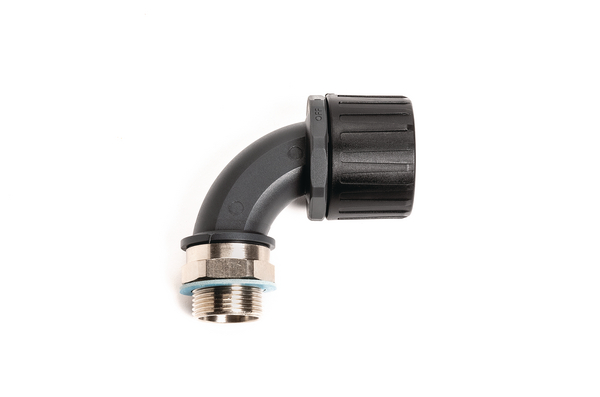

HGU28-90-M25B-PA66-BK
Art.-No. 166-90808 | HGU28-90-M25B-PA66-BK |  Details

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU28-90-M25B-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in pack
    Swivel Thread (Y/N) No
    Thread type metric
    Type HGU28-90-M25B
    Variant 90°-elbow
    Bore Diameter (Imperial) 0.75"
    Bore Diameter (metric) 19.0
    Length (L) 66.0mm
    Nominal ∅ 0.75"
    Nominal ∅ 28mm
    Outside Ø (OD) 51.0mm
    Outside ∅ (OD) 2.01"
    Thread Length (TL) 15mm
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026588230
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
    UNSPSC Key 39131601
