Braided Sleeving
Art.-No. 170-04013 | BHSS-12-PET/PE-BK |  Details

    • Heat shrinkable
    • Adapts to variations in diameters and shapes
    • Provides abrasion and vibration resistance
    • Reduces noise
    Add to watchlist
    Downloads Datasheet
    Application Made of polyester multifilament and modified heat shrinkable polyolefin. It can be used for abrasion protection and reduction of noise in cables, tubes and hoses, adapting to variations in diameters and shapes.
    Colour Black (BK)
    Material Polyester (PET), Polyethylene (PE)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BHSS-12-PET/PE-BK
    Pack Cont. 100m
    Package Content packed in reel
    Product Family Heat Shrinkable Braided Sleeve BHSS
    Product Group Braided Sleeving
    Shrink Ratio 2:1
    Type BHSS-12
    Nominal ∅ 0.5"
    Nominal ∅ 12.0mm

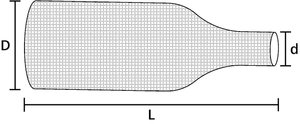

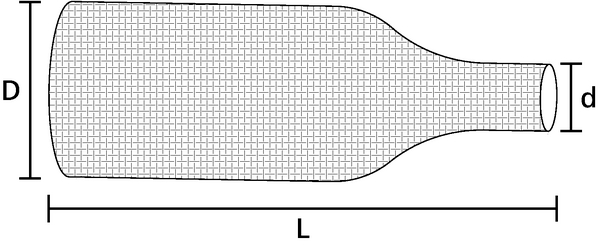

    Recov. ∅ d max. 6.0mm
    Supplied ∅ D min. 12.0mm
    Halogen-free Yes
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 7890176075550
    Reel Length 100m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
