22/12/2024

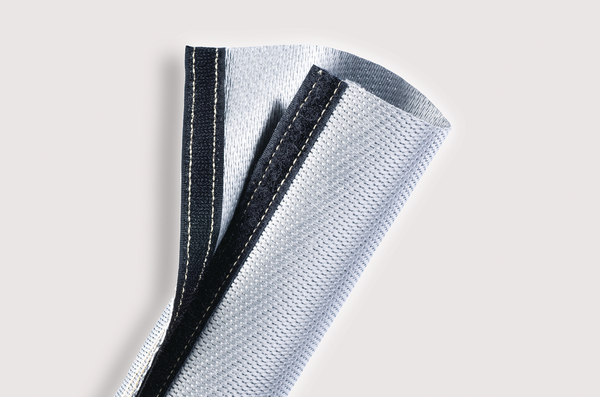

Protects cables from sparks during welding
Art.-No. 170-04100 | WS25-SiO2-SR |  Details

    • Since Silicone is used for material, it has excellent heat resistance.
    • Detachable protective sleeving with hook-and-loop seal, easily attached to existing cables and piping
    • Silicone coated makes it easy to repel sparks and slags.
    Add to watchlist
    Downloads Datasheet
    Application to protect the electric wires of moving parts, on welding robots and grinding robots, to protect the electric wire from sparks and slags in welding and forging sites.
    Colour Silver (SR)
    Material Silica (SiO2)
    Open, post termination (Yes/No) No
    PART DESCRIPTION WS25-SiO2-SR
    Pack Cont. 15.24m
    Package Content packed in reel
    Product Family Helagain WS series
    Product Group Protects cables from sparks during welding
    Type WS25
    Length (L) 15.24m
    Wall (WT) 1.3mm
    CE Certification No
    Operating Temperature -54 °C to +260 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4944387115604
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
