Global Category 6
Art.-No. 853-45046
| 2/4808IDCAG6/BK-RS
|
Details
- Exceeds Category 6 performance standards

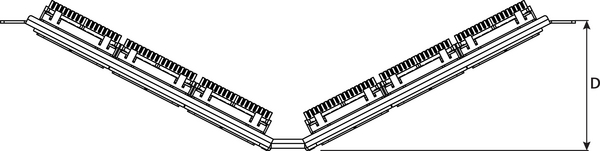

- Angled design provides increased rack capacity
- 4 Port RJ45 modules
- 568A or 568B wiring options
- Double labelling fields and software available
- Magnifying covers over labelling fields
- Supplied with Rack Snap mounting fixings as standard
- Optional rear cable management
- Also available in 1U 24 port configuration
- Backward compatible to Category 5e, Category 5 and Voice
More products in this product group:
| Colour | Black (BK) |

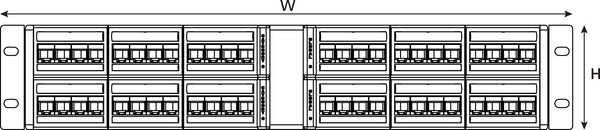

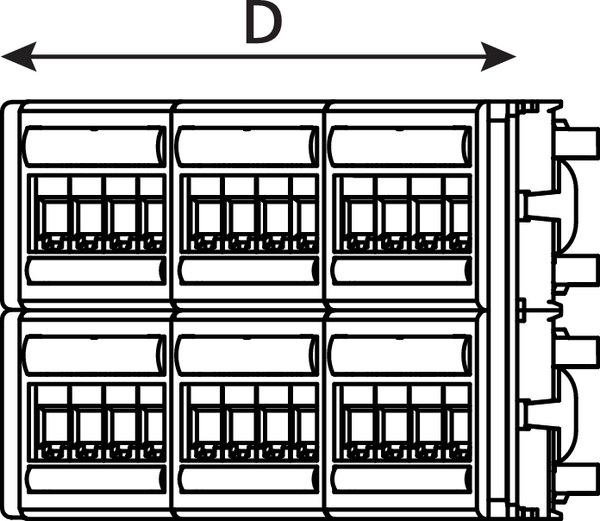

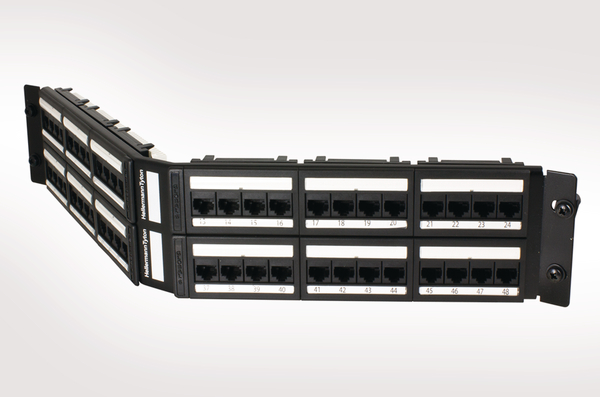

| Description | The Angled Global Category 6 range of patch panels offer exceptional performance and are available in 1U 24 port of 2U 48 port versions. The Angled Global 2U 48 port panel is constructed of 12 modular units, each offering 4 RJ45 ports. The panel can be supplied partially loaded to meet the exact requirements of the application, giving a cost effective solution. The panel is supplied with Rack Snap mounting fixings, it offers 2 labelling fields with a magnifying lens for clear identification as standard. The angled design of the panel removes the need to use front cable management increasing capacity by up to 50%. The Category 6 Angled Global patch panels are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| PART DESCRIPTION | 2/4808IDCAG6/BK-RS |
| Package Content packed in | box |
| Panel Fixing Method | rack snap |
| Performance Category | Category 6 (Class E) |
| Port count | 48 |
| Product Family | 2U 48 Port Angled Panel |
| Product Group | Global Category 6 |
| Technical Description | The Angled Category 6 Global Patch Panel is manufactured from black powder coated mild steel and the jack presentation within the Angled Global patch panel is a 4 port modular PCB assembly which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Angled Global Panel is supplied with a comprehensive colour and numbering label on the rear of the modules showing both 568A and 568B wiring options to ensure error free terminations. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Angled Global Category 6 Panels offer backward compatibility with Category 5e, Category 5 and Voice products. |
| Type | 2/4808IDCAG6/BK-RS |
