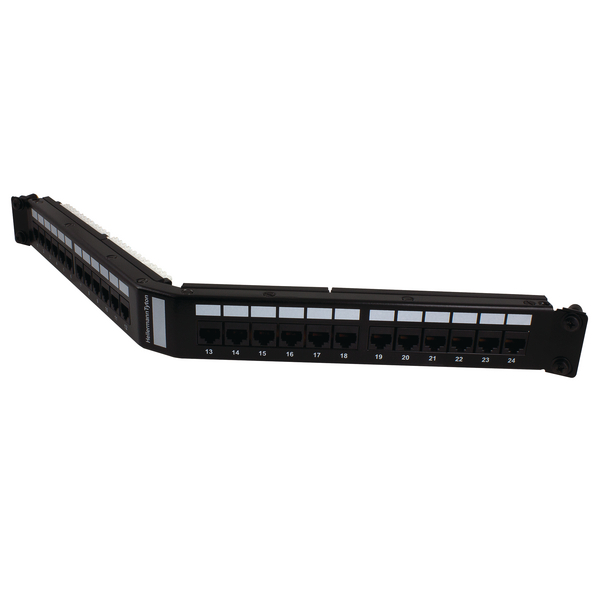

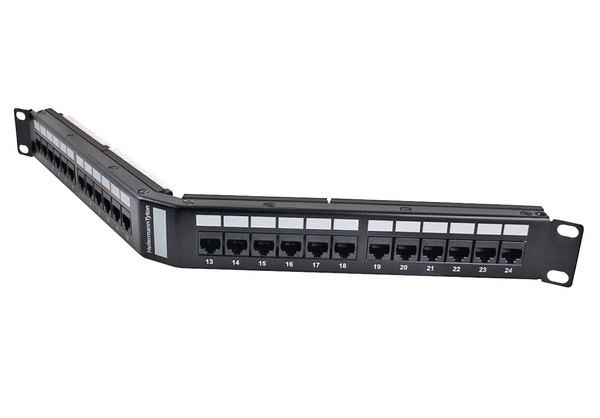

Universal 110 Category 6
Art.-No. 853-50054
| APP110C624
|
Details
- Exceeds Category 6 performance standards
- Angled design provides increased rack capacity
- Configured for T568A or T568B wiring
- 110 punch down IDC
- Write-on labels provided for easy identification
- Optional rear cable manager available
- Also available in 2U 48 port configuration
- Backward compatible to Category 5e, Category 5 and Voice
More products in this product group:
| Colour | Black (BK) |
| Description | The Universal 110 Angled Category 6 range of panels offer exceptional performance and are available in 1U 24 port and 2U 48 port configurations. The 1U 24 Port Angled Panel is constructed of 4 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of damage or failure. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The Universal 110 1U 24 Port Angled Patch Panel is supplied with Rack Snap, Cage Nut or 12-24 rack screw fixings and an optional rear cable manager is available. The Universal 110 Angled Category 6 products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| PART DESCRIPTION | APP110C624 |
| Pack Cont. | 1pc. |
| Package Content packed in | box |
| Panel Fixing Method | 12 – 24 ack screws |
| Performance Category | Category 6 (Class E) |
| Product Family | 1U 24 Port Angled Panel |
| Product Group | Universal 110 Category 6 |
| Technical Description | The Universal 110 Angled Category 6 Panel is available in 1U 24 port or 2U 48 port configurations. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each U also has a separate central labelling field for patch panel identification. The Angled Global Panel is supplied with a comprehensive colour and numbering label on the rear modules showing both 568A and 568B wiring options to ensure error free terminations. Each PCB modules is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Universal 110 Angled Category 6 panels offer backward compatibility with Category 5e, Category 5 and voice products. |
| Type | APP110C624 |
