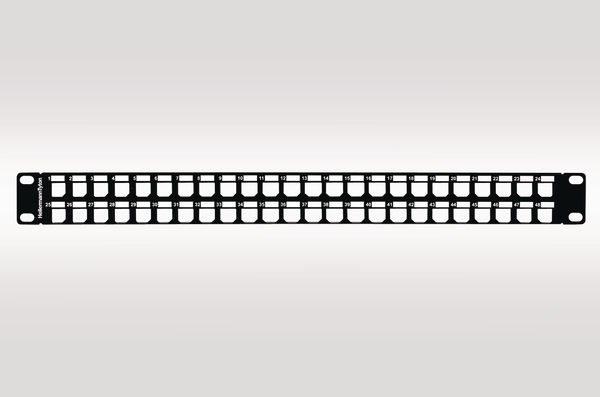

Modular Unshielded 48 Port Panel
Art.-No. 853-50043 | GSTPP-1U48XX | Details

More products in this product group:

Colour	Black (BK)
Description	The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of GST keystone jacks. The use of individual keystone jacks means that installation is straight forward and allows an individual jack to be removed if required. The Modular Keystone panels is supplied without fixings, the panel is also available with Rack Snap Mountings, a Cage Nut Kit or12 – 24 rack screws if required. An optional rear cable manager is also available.
PART DESCRIPTION	GSTPP-1U48XX
Package Content packed in	box
Performance Category	Modular
Port count	48
Product Family	1U Flat
Product Group	Modular Unshielded 48 Port Panel
Technical Description	Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. They are supplied as standard unloaded but include rack snaps for fast cabinet installation. The rear cable management bar is sold separately.
Type	GSTPP-1U48XX
