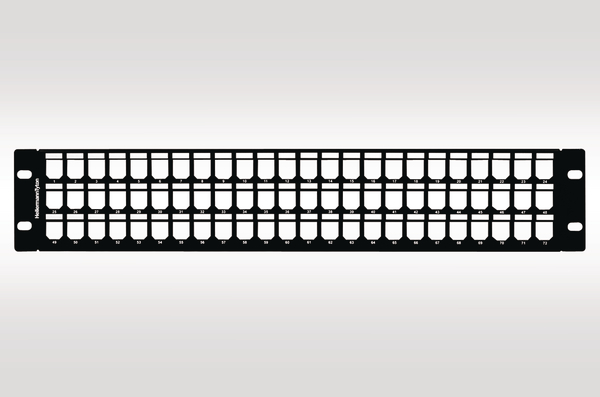

Modular Unshielded 72 Port Panel
Art.-No. 853-50070
| GSTPP-2U72CN
|
Details
- Industry standard keystone apertures
- Jack colours and icons (C6A, C6, C5e) visible when in panel
- Clear screen printed labelling fields
- Supplied with a Cage Nut Kit
- Optional rear cable manager available
- Also available in 2U 48 port, 1U 48 port and 1U 24 port configurations
More products in this product group:
| Colour | Black (BK) |
| Description | The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of GST keystone jacks. The use of individual keystone jacks means that installation is straight forward and allows an individual jack to be removed if required. The Modular Keystone panel is supplied with a Cage Nut Kit, the panel is also available with a Rack Snap Mountings, 12 – 24 rack screws or without fixings if required. An optional rear cable manager is also available. |
| PART DESCRIPTION | GSTPP-2U72CN |
| Package Content packed in | box |
| Performance Category | Modular |
| Port count | 72 |
| Product Family | 2U Angled |
| Product Group | Modular Unshielded 72 Port Panel |
| Technical Description | Manufactured from black powder coated mild steel. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. They are supplied as standard unloaded. The rear cable management bar is sold separately. |
| Type | GSTPP-2U72CN |
Download
GSTAPP-2U48SC
853-50053
GSTAPP-2U72CN
853-50058
GSTPP-2U72XX
853-50071
