Copper Products
Art.-No. 853-19205 | P108-48-MOD |  Details

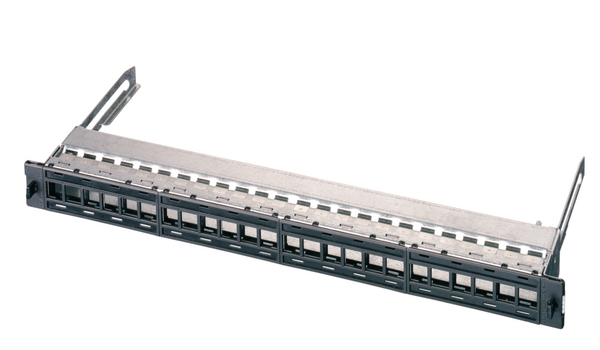

The modular design provides flexibility with the panel for customization of different applications including coax, voice, audio, video and fiber.

    • Sliding panel to enable easy access
    • 24 ports in 1U
    • Earth lead included
    • Dual labelling fields
    • Rear cable manager
    Show more
    Add to watchlist
    Downloads
    Colour Black (BK)

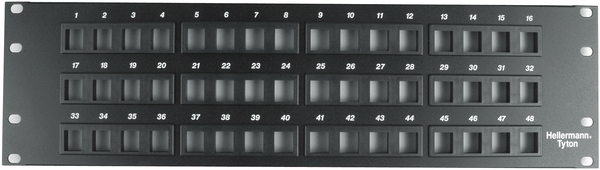

    Description The modular patch panel is designed to accept HellermannTyton Category 6A, 6 and 5e UTP modular jacks and connectors, providing flexibility in multimedia installations. These modular panels can be mounted to any standard EIA 19" rack, cabinet or wall mount patch panel bracket. HellermannTyton pre-numbered modular patch panels are available in 12,16, 24, 32 and 48 port configurations.
    Material Steel (ST)
    PART DESCRIPTION P108-48-MOD
    Pack Cont. 1pc.
    Package Content packed in box
    Product Group Copper Products
    Type P108-48-MOD
    Height (H) 133.35mm
    Height, Units 3U
    Length (L) 482.6mm
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E195684
    Country of Origin TW
    Dimensions W x H x D 133.35 mm x
    ETIM 7.0 Key EC000264
    ETIM 8.0 Key EC000264
    ETIM 9.0 Key EC000264
    UNSPSC Key 43223309
    Connectivity Products Connectivity Products

    Connectivity products

    HellermannTyton is an established leader in the design, development and manufacture of innovative network infrastructure ...

    Connectivity products >
    Art.-No.: 853-19205 Details My watchlist Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads
    Add to watchlist
